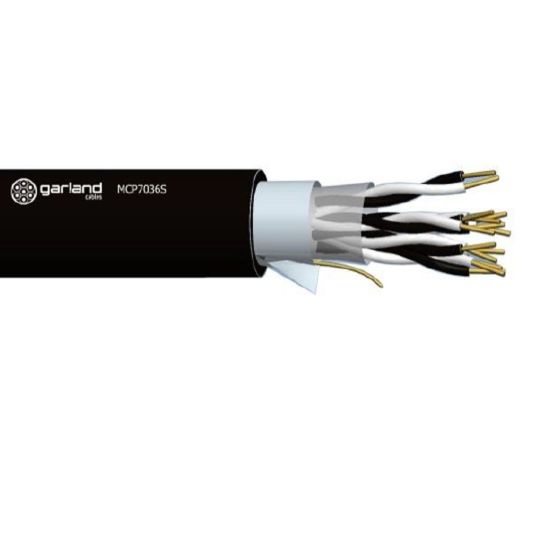

Garland 0.5mm 6 Pair Instrumentation Cable Unarmoured Overall Screened

Description

Instrumentation Cable, Unarmoured, 0.5 mm, Annealed Copper, 110-150 Volt, 6 Pair, 7/0.3 mm Strands, Overall Screened Screen, 11 mm Overall Diameter, 110 mm Static Bend Radius, Insulation: >100% Outer Sheath: >100% Elongation, 360 N Pulling Tension, >12 MPa Tensile Strength, DC: 38.4 Ohm/km Conductor Resistance, 0.3 mm Insulation Thickness, 1.1 mm Sheath Thickness, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Black/White Numerals Core, V-90HT PVC Insulation, 5V-90 PVC Sheath, Black Sheath, -15 to 90 deg C, AS/NZS 1125 AS/NZS 3808 IEC 60332-1

Key Specifications

Barcode (EAN-13)	9329849004736
SKU	GARMCP7036S100
Brand	Garland
Product Type	Instrumentation Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MCP7036S100
Bend Radius	Static 110 mm
Conductor Resistance	DC: 38.4 Ohm/km
Conductor Size	0.5 mm
Conductor Type	Annealed Copper
Core Colours	Black/White Numerals
Elongation	Insulation: >100% Outer Sheath: >100%
Insulation Material	V-90HT PVC
Number of Pairs	6 Pair
Insulation Thickness	0.3 mm
Overall Diameter	11 mm
Pulling Tension	360 N
Screen Coverage	100%
Screen Format	Overall Screened
Screen Material	Aluminium/Polyester Tape
Sheath Colour	Black
Sheath Thickness	1.1 mm
Sheath Material	5V-90 PVC
Standards	AS/NZS 1125 AS/NZS 3808 IEC 60332-1
Stranding	7/0.3 mm
Temperature	-15 to 90 deg C
Tensile Strength	>12 MPa
Voltage	110-150 Volt
