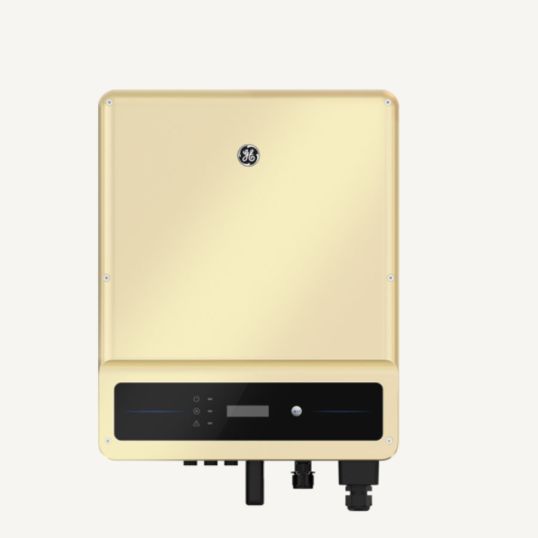

GE Solar Inverter 3 MPPT 1 Phase 8500W 13/13/13A

Description

Solar Inverter, 1 Phase, 13500 Watt DC Input, 600 Volt DC Input, 360 Volt DC Nominal, 80-550 Volt DC MPPT Voltage Range, 80 Volt DC Start-up, 13/13/13 Amp DC Max. Input, 3 MPPTs, 8500 Watt AC Output, 9350 VA AC Max. Apparent, 220/230 Volt AC Nominal, 50/60 Hz AC Operating, 42.5 Amp AC Output, 1 (Adjustable 0.8 Leading - 0.8 Lagging) Power Factor, <3% Harmonic Distortion, 97.8% Efficiency, 97.5% European Weighted Efficiency, Transformerless, <=4000 mtr Max. Altitude, Wi-Fi, RS485, LAN (Optional) Communication Port, LCD/LED Display, Natural Convection Cooling, IP65, -25 to 60 deg C, 0-100% Relative Humidity, 415 mm Height, 511 mm Width, 175 mm Depth, 22.5 kg

Key Specifications

SKU	GDWGEP8.5-1-10
Brand	GE
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	GEP8.5-1-10
AC Max. Apparent Power	9350 VA
AC Nominal Voltage	220-230 Volt
AC Operating Frequency	50/60 Hz
AC Output Current	42.5 Amp
AC Output Power	8.5 kW
Communication Port	Wi-Fi/RS485/LAN (Optional)
Cooling Method	Natural Convection
DC Input Power	13500 Watt
DC Input Voltage	600 Volt
DC Max. Input Current	13 Amp
DC MPPT Voltage Range	80-550 Volt
DC Nominal Voltage	360 Volt
DC Start-up Voltage	80 Volt
Depth	175 mm
Display Type	LCD/LED
Efficiency	97.80%
European Weighted Efficiency	97.50%
IP Rating	IP65
Height	415 mm
Item Weight	22.5 kg
Max. Operating Altitude	<=4000 mtr
Number of MPPTs	3
Operating Temperature	-25 to 60 deg C
Phase	1 Phase
Power Factor	1 (Adjustable 0.8 Leading - 0.8 Lagging)
Relative Humidity	0-100%
Topology	Transformerless
Total Harmonic Distortion	<3%
Width	511 mm
