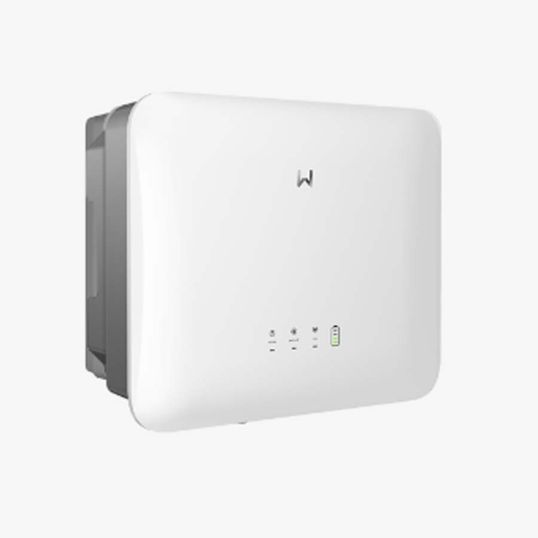

Goodwe ES G2 Series Hybrid Inverter 6000W Single Phase 2 MPPT

chevron-left
loader
Loading...

Description

chevron-down
Hybrid Inverter, 1 Phase, 9000 Watt DC Input, 600 Volt DC Input, 360 Volt DC Nominal, 60-550 Volt DC MPPT Voltage Range, 58 Volt DC Start-up, 16 Amp DC Max. Input, 2 MPPTs, 6000 Watt AC Output, 6000 VA AC Max. Apparent, 220/230/240 Volt, 50/60 Hz, 27.3 Amp AC Output, 1 (Adjustable From 0.8 Leading to 0.8 Lagging) Power Factor, <3% Total Harmonic Distortion, 97.6% Efficiency, 96.7% European Weighted Efficiency, 99.9% MPPT Efficiency, Non-Isolated, 3000 (>2000 Derating) Max. Altitude, Integrated DC Switch, Battery: Li-Ion, 48 Volt, CAN/RS485/Wi-Fi/Wi-Fi + LAN/4G, LED, WLAN + APP Display, Natural Convection Cooling, Wall Mounting, IP65, -25 to 60 deg C, 0 -95% Relative Humidity, 434.9mm Height, 505.9mm Width, 154.8mm Depth, 21.5 kg

Key Specifications

chevron-down
SKU
GDWGW6000-ES-20
Brand
Goodwe
Product Type
Hybrid Inverters

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Smart control & monitoring
  • Superb safety & reliability
  • Friendly & thoughtful design
  • Flexible & adaptable applications
Standard Pack Size 1
UNSPSC Class 26111600
UOM EA
Vendor Product GW6000-ES-20
AC Operating Frequency 50/60 Hz
AC Nominal Voltage 220-230-240 Volt
AC Max. Apparent Power 6000 VA
AC Output Current 27.3 Amp
AC Output Power 6000 Watt
Battery Li-Ion/48 Volt
Communication Port CAN/RS485/Wi-Fi/Wi-Fi + LAN/4G
DC Input Power 9000 Watt
DC Input Voltage 600 Volt
DC Max. Input Current 16 Amp
Cooling Method Natural Convection
DC MPPT Voltage Range 60-550 Volt
DC Nominal Voltage 360 Volt
DC Switch Integrated
DC Start-up Voltage 58 Volt
Display Type LED/WLAN + APP
Depth 154.8 mm
European Weighted Efficiency 96.70%
IP Rating IP65
Height 434.9 mm
Efficiency 97.60%
Max. Operating Altitude 3000 (>2000 Derating)
Number of MPPTs 2
Mounting Method Wall
MPPT Efficiency 99.90%
Operating Temperature -25 to 60 deg C
Phase 1 Phase
Power Factor 1 (Adjustable From 0.8 Leading to 0.8 Lagging)
Relative Humidity 0 -95%
Total Harmonic Distortion <3%
Topology Non-Isolated
Width 505.9 mm
