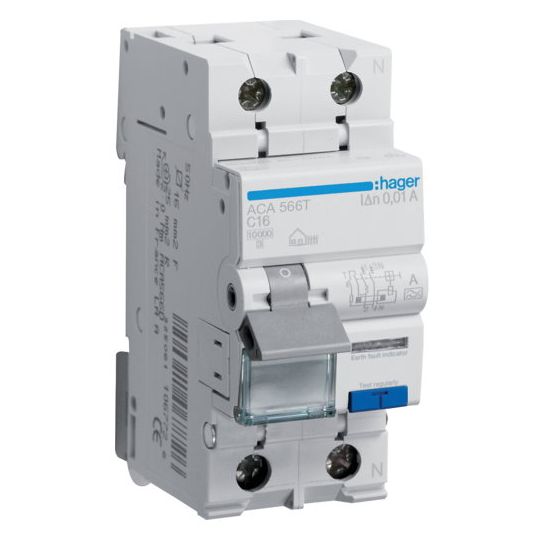

Hager Combination RCD Circuit Breaker RCBO 1P+N 16 Amp 230/240V AC 10kA 2Module 36mm DIN Rail

Description

Combination RCD Circuit Breaker RCBO Type A, 16 Amp, 230/240 Volt AC, 50 Hz, Interrupt Capacity: 10 kA, Trip Sensitivity: 10 mA, Magnetic Rating: 5/10 In, Number of Poles: 1P + N, Number of Modules: 2, 36mm Module Width, Trip Characteristic: C Curve, 1-16 mm Flexible/1-25 mm Rigid Terminal Connection, Screw, IP20, DIN Rail, 83mm Height, 35mm Width, 68mm Depth

Key Specifications

Barcode (EAN-13)	3250611011859
SKU	HAGACA566T
Brand	Hager
Product Type	Combination RCBO

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	ACA566T
Current	16 Amp
Connection Type	Screw
Height	83 mm
Depth	68 mm
Modules	2 Module 36 mm
Frequency	50 Hz
Interrupt Capacity	10 kA
Mounting Method	DIN Rail
IP Rating	IP20
Number Of Poles	1 Pole
Trip Characteristic	C Curve
Terminal Connection	1-16 sq-mm Flexible / 1-25 sq-mm Rigid
Trip Sensitivity	10 mA
Voltage	230-240 Volt
Width	35 mm
