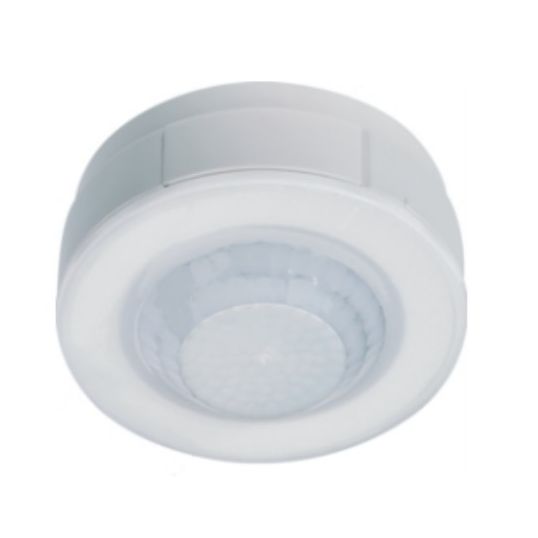

Hager Movement Detector 360deg 6M 10A 230V IP21 White Surface Mount
Loading...
Description
Movement Detector, 230 Volt, 10 Amp, 50/60 Hz, IP21, Surface Mounting, 4 mtr Mounting Height, 360 deg Detection Angle, 6 mtr Detection Distance, 1-2.5 mm, White, 0 to 45 deg C, 100 mm Length, 105.5 mm Width
Key Specifications
| Barcode (EAN-13) |
3250612258765
|
|---|---|
| SKU |
HAGEE804A
|
| Brand |
Hager
|
| Product Type |
Motion Detectors
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | EE804A |
| Colour | White |
| Conductor Size | 1-2.5 mm |
| Detection Angle | 360 deg |
| Current | 10 Amp |
| Detection Distance | 6 mtr |
| Frequency | 50/60 Hz |
| IP Rating | IP21 |
| Mounting Height | 4 mtr |
| Mounting Method | Surface |
| Temperature | 0 to 45 deg C |
| Voltage | 230 Volt |
| Width | 105.5 mm |
