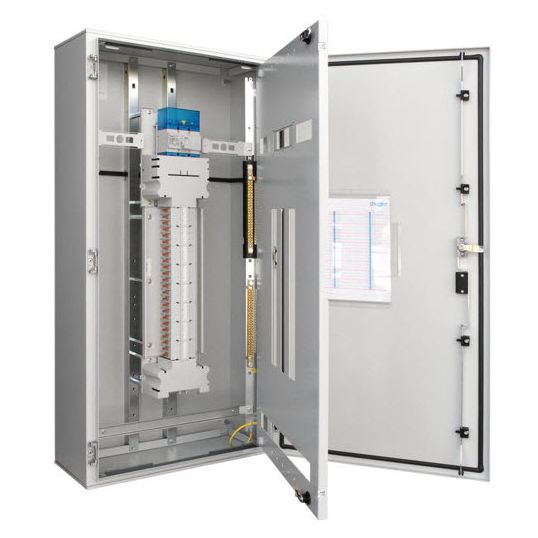

Hager Elite Distribution Panelboard W/200A MCCB Full Chassis Surface 72P 1.6mm Galvanised Steel Light Grey IP66

Description

Distribution Panelboard, Full Chassis, 250 Amp, Number of Poles: 72, Keylock and Field Reversible Door, Surface, For Use With: MCCBs, IP66, 1.6mm Galvanised Steel, RAL7035 Light Grey, 1600mm Height x 600mm Width x 250mm Depth

Key Specifications

Barcode (EAN-13)	9329659005107
SKU	HAGJPE7200M20DW
Brand	Hager
Range Name	Performa Elite
Product Type	Distribution Panelboards

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Removable 24 pole DIN section at bottom Increased depth to 250 mm Removable gland plates as standard Split chassis option Split neutral and earth links with bridged neutrals Choice of incomer switches or MCCB device 2 x 6 pole DIN Fault current rated at 20 kA for 0.2 sec Field reversible door and hinged escutcheon Swing handle with key lock
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	JPE7200M20DW
Colour	Light Grey
Current	250 Amp
Dimensions	1600mm Height x 600mm Width x 250mm Depth
Door Type	Keylock/Field Reversible
IP Rating	IP66
Material	1.6mm Galvanised Steel
Mounting Method	Surface
Number Of Poles	72P
