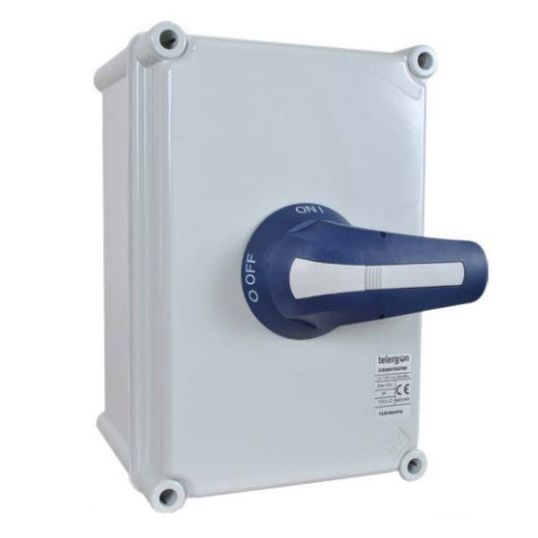

Telergon Load Break Switch Enclosed 3P 160A AC21 Door Mount IP65

Description

Load Break Switch Enclosed, 690 Volt AC, AC21 Rating: 160 Amp @ 690 Volt AC, AC23 Rating: 160 Amp @ 690 Volt AC, 88 kW @ 690 Volt AC, 3 Pole, Cable Size: 95 mm, IP65, Door Mount, Reinforced Polyester, Light Grey, Finish: Powder Coated, 270 mm Height, 180 mm Width, 170 mm Depth

Key Specifications

Barcode (EAN-13)	9322017235109
SKU	IPDTLB1603P/E
Brand	Telergon
Product Type	Load Break Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	IP65 powder coated mild steel High impact strength Up to 3 padlocks on handle Rated up to 690 Volt AC Tested IEC 60947.3 Door interlocked in ON position Add on optional aux contacts
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	TLB1603P/E
AC21 Rating	160 Amp AC21 @ 690 Volt AC
AC23 Rating	160 Amp 88 kW @ 690 Volt AC
Cable Size	95 sq-mm
Colour	Light Grey
Depth	170 mm
Height	270 mm
IP Rating	IP65
Number Of Poles	3 Pole
Voltage	690 Volt AC
Width	180 mm
