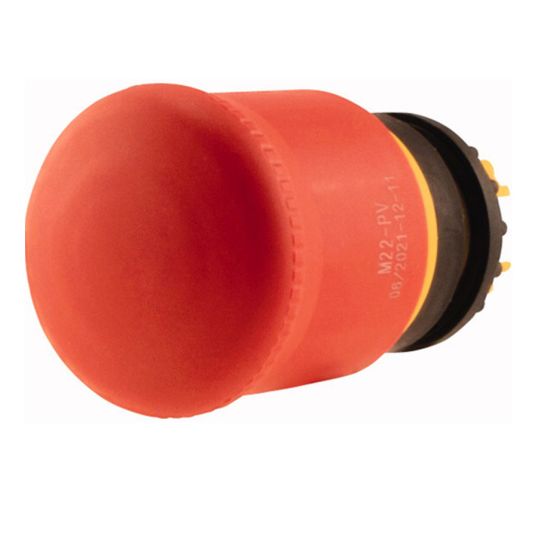

Eaton Moeller RMQ-Titan Non-Illuminated Emergency Stop Actuator Mushroom 22.5mm IP66/IP69

Description

Emergency Stop Actuator Non-Illuminated, Mushroom Actuator Head, Pull to Release Device Function, Pushbutton Operator, 100000 Cycles, 22.5 mm Mounting Hole Diameter, IP66/69, NEMA 4X/13, Red, -25 to 70 deg C, 38 mm Diameter, 1 in Height, 2 in Width, 2 in Depth

Key Specifications

SKU	KLOM22-PV
Brand	Eaton Moeller
Product Type	Emergency Stop

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	M22-PV
Actuator Head	Mushroom
Device Function	Pull to Release
Colour	Red
Depth	2 inch
Diameter	38 mm
Height	1 inch
IP Rating	IP66/69
Mounting Hole Diameter	22.5 mm
NEMA Rating	NEMA 4X/13
Operating Cycles	100000 Cycles
Operator Type	Pushbutton
Temperature	-25 to 70 deg C
Width	2 inch
