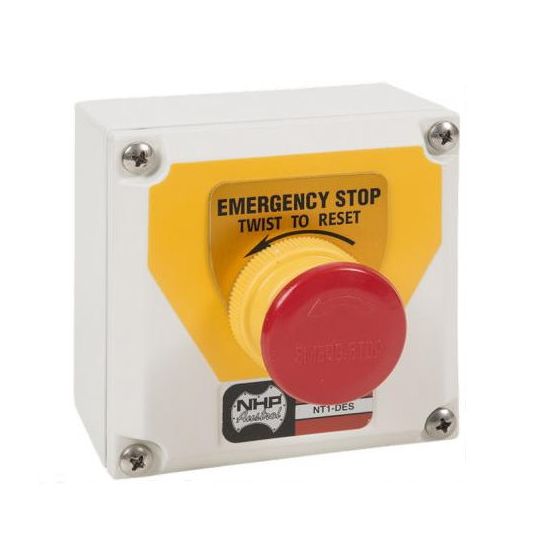

NHP Pushbutton Emergency Stop Complete 1G 1N.O-1N.C Aluminium Grey/Red Operator Twist Reset

Description

Pushbutton Emergency Stop Complete, 1 Operator, 1NO-1NC, Twist to Reset, Legend: EMERGENCY STOP, TWIST TO RESET, Black, Non Illuminated Pushbutton, Hub Size: 38 mm Operator, Panel Mount, IP66, Die-Cast Aluminium, Grey, Red Operator, -30 to 80 deg C, 97 mm Height, 87 mm Width, 61 mm Depth

Key Specifications

Barcode (EAN-13)	9321807029713
SKU	NHPNT1-DES
Brand	NHP
Product Type	Control Stations

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Engineered and manufactured in Australia, the N100 30.5mm range of heavy duty control elements are made to meet the harshest operating environments Customisable and modular the N100 range includes pushbuttons, pilot lights, selector switches, estops and more, with a wide range of accessories to ensure a complete selection for your installation Self-wiping contacts with a unique rolling action ensures every operation removes any dust or non-conductive film and prolongs the life of your components
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	NT1DES
Colour	Grey/Red Operator
Actuator	Non Illuminated Pushbutton
Contact Configuration	1 Normally Opened & 1 Normally Closed
Enclosure Material	Die-Cast Aluminium
Depth	61 mm
Height	97 mm
Hub Size	38 mm Operator
IP Rating	IP66
Mounting Method	Panel
Legend Colour	Black
Legend	EMERGENCY STOP-TWIST TO RESET
Number of Operators	1 Module
Operator Type	Twist to Reset
Temperature	-30 to 80 deg C
Width	87 mm
