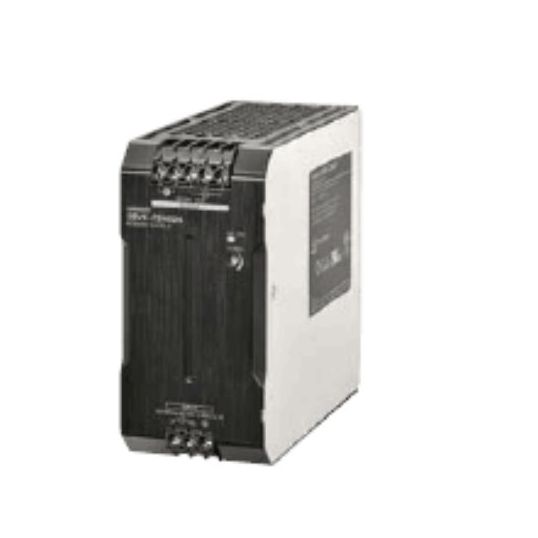

Omron Power Supply Single Phase In 100-240V/90-350VDC Out 24VDC 240W 10A DIN Rail Mount

Description

Power Supply Single Phase, 100-240 Volt AC/90-350 Volt DC Input Voltage, 24 Volt DC Output Voltage, 10 Amp, 240 Watt Output, 50/60 Hz, 1 Phase Phase, 0.92 Power Factor, DIN Rail Mounting, IP20, 89% Efficiency, -25 to 60 deg C, 125 mm Height, 60 mm Width, 140 mm Depth

Key Specifications

Barcode (EAN-13)	4548583357921
SKU	OMRS8VK-C24024
Brand	Omron
Product Type	Power Supplies

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Universal input for worldwide applications Compact dimension for small space Flexible installation by special mounting brackets
Standard Pack Size	1
UNSPSC Class	39121000
UOM	EA
Vendor Product	S8VK-C24024
Current	10 Amp
Depth	140 mm
Efficiency	89%
Height	125 mm
Frequency	50/60 Hz
Input Voltage	100-240 Volt AC/90-350 Volt DC
IP Rating	IP20
Output Rating	240 Watt
Mounting Method	DIN Rail
Output Voltage	24 Volt DC
Phase	1 Phase
Power Factor	0.92
Temperature	-25 to 60 deg C
Width	60 mm
