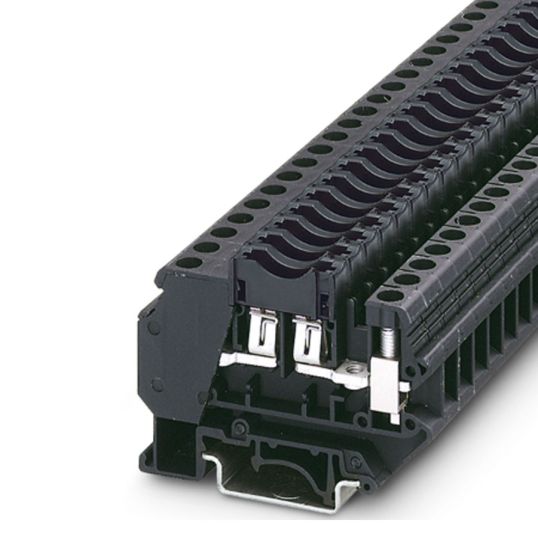

Phoenix Contact Fused Terminal Block Screwed 2 Wire 1 Level 0.2-6mm Black Polyamide

Description

Fuse Modular Terminal Block, 0.2-10 mm, 2 Conductors, 250 Volt, 4 kV Rated Surge Voltage, 30 Amp, 10 mm Wire Strip Length, 1.5-1.6 Nm Tightening Torque, 2 Conductor Wiring Format, 2 Connection Points, 1 Potential, 1 Level, Screw Terminal, NS 35/15 - NS 35/7,5 Mounting, Polyamide Insulation, Black, -60 to 110 deg C, UL94 V0 Flammability, 64 mm Height, 8.2 mm Width, 52.6 mm; 53.8 mm NS 35/7,5; 61.3 mm NS 35/15; 58.8 mm NS 32 Depth

Key Specifications

SKU	PHO3118203
Brand	Phoenix Contact

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Can be bridged with FBI ... fixed bridge For the use of KFZ flat-type fuses from the FSI/C series
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	3118203
Colour	Black
Conductor Size	0.2-10mm
Current Rating	30 Amp
Depth	52.6 mm - 53.8 mm NS 35/7,5 - 61.3 mm NS 35/15 - 58.8 mm NS 32
Flammability	UL94 V0
Insulation Material	Polyamide
Height	64 mm
Mounting Method	NS 35/15 - NS 35/75
Number of Conductors	2
Number of Connection Points	2
Number of Potentials	1
Number of Levels	1
Rated Surge Voltage	4 kV
Terminal Type	Screw
Temperature	-60 to 110 deg C
Tightening Torque	1.5-1.6 Nm
Voltage Rating	250 Volt
Width	8.2 mm
Wire Strip Length	10 mm
Wiring Format	2 Conductor
