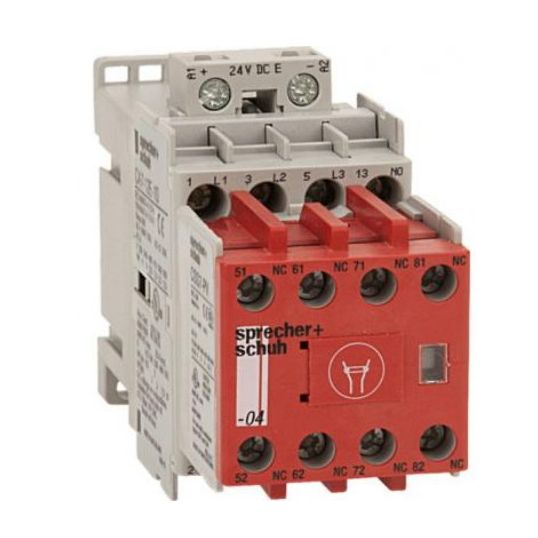

Contactor Safety Switching DC Operated 3 Pole 11kW 23A 32A 24VDC 1NO-4NC Auxiliary 3NO Main DIN Rail/Base Mount

Description

Contactor Safety Switching DC Operated, 24 Volt DC, 1NO+4NC Auxiliary, 3NO Main, AC3 Rating (kW): 11/10, AC3 Rating (Amps): 23, AC1 Rating (Amps): 32, 3 Pole, IP20, DIN Rail/Base Mount

Key Specifications

Barcode (EAN-13)	9321807226044
SKU	S&SCAS7-23E-14C24VDC
Brand	Sprecher+Schuh
Range Name	CAS7
Product Type	Contactors Safety

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Several contactor families provide a wide variety of contactor sizes, offering economy and selection Compact dimensions saves panel space Permanently installed cover prevents manual operation Red contact housing for easy identification
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	CAS723E14C24VDC
AC1 Rating (Amps)	32 Amp AC1
AC3 Rating (Amps)	23 Amp AC3
AC3 Rating (kW)	11/10 kW
Contact Configuration	1 Normally Opened & 4 Normally Closed Aux
IP Rating	IP20
Mounting Method	DIN Rail/Base
Number Of Poles	3 Pole
Operating Coil Voltage	24 Volt DC
