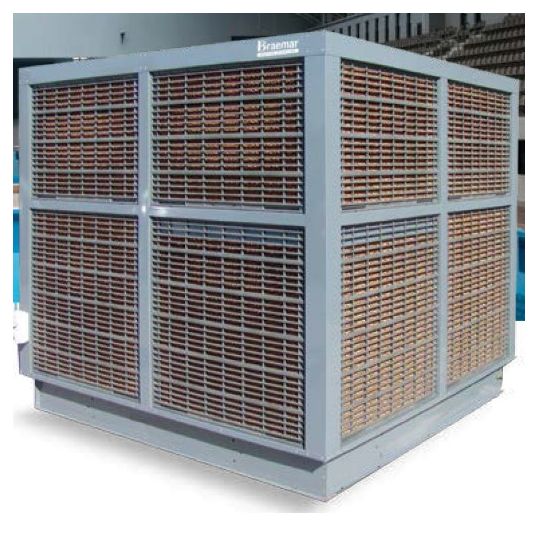

Braemar Evaporative Air Conditioner Fan Motor: 8.5 A 3 Phase 4.5kW

Description

Evaporative Air Conditioner, Cooling Air Flow Rate: 8810 l/sec, Fan Motor: 8.5 A, 3 Phase, 4.5 kW, Outdoor 1510mm Height x 1520mm Width x 1520mm Depth, Discharge Type: Chillcel Down, Speed Setting: 2 Speed, Powder-Coated Aluminium

Key Specifications

Barcode (EAN-13)	09312168087238
SKU	SEY087238
Brand	Braemar
Range Name	Commercial RPB
Product Type	Evaporative Air Conditioning

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Cabinet:Constructed from marine grade aluminium, incorporating channel section corner pillars, mounted on a heavy gauge base frame for structural stability Fan wheel:The fan wheel is double inlet, multi-blade, forward curve, centrifugal type The blower shaft on the RPB1200 to 1800 models is mounted in plummer blocks with self-aligning, single row ball bearings RPB600-1000 models have a stainless steel shaft. Mounted in metal housing with self-aligning single row ball bearings Water management:Rotational moulded in polyethylene to provide corrosion free long life and durability Industry standard connections (half inch BSP) make installation quick and easy Fan motors:Tropic proof two speed motors fitted as standard All coolers are three phase and have manual re-set overload for added safety
Standard Pack Size	1
UNSPSC Class	40101700
UOM	EA
Vendor Product	087238
Discharge Type	Chillcel Down
Cooling Air Flow Rate	8810 l/sec
Material	Powder Coated
Outdoor Dimensions	1510 mm Height x 1520 mm Width x 1520 mm Depth
Power Supply	Fan Motor: 8.5 A/3 Phase/4.5 kW
Speed Setting	2 Speed
