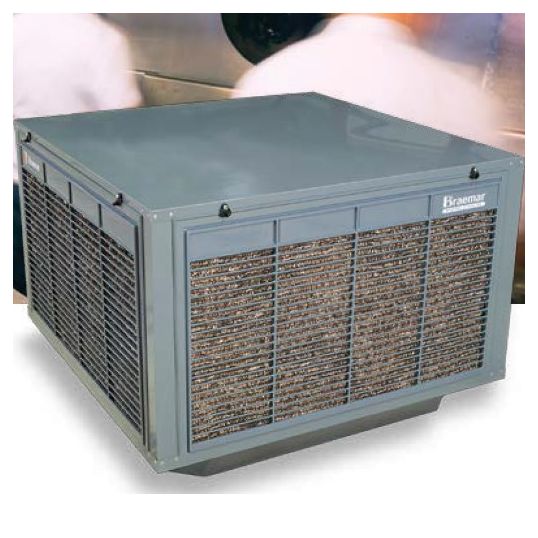

Braemar Evaporative Air Conditioner Fan Motor: 7.1 A 1 Phase 1100 W

Description

Evaporative Air Conditioner, Cooling Air Flow Rate: 3050 l/sec, Fan Motor: 7.1 A, 1 Phase, 1100 W, Outdoor 1000mm Height x 1050mm Width x 1050mm Depth, Discharge Type: Aspenl Top, Speed Setting: 2 Speed, Powder-Coated Aluminium

Key Specifications

Barcode (EAN-13)	09312168089089
SKU	SEY089089
Brand	Braemar
Range Name	Commercial RPC
Product Type	Evaporative Air Conditioning

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Cabinet:Constructed from powder coated marine grade aluminium for strength and durability. The RPC series is well suited direct on-duct mounting for economical and unobtrusive down discharge installations. Side and top discharge options are also available on most units. Stainless Steel cabinets also available, contact your local representative for details Fan Wheel:The Fan wheel is a double inlet, multi-blade, forward curve, centrifugal type and is statically balanced Fan motors:Tropic proof two speed single phase resilient mounted motors are used for quiet operation Electrical Control:The Electrical Control Box is prewired within the cooler and incorporates an isolating switch. Mains wiring is directly to the Control Box Water Connection:Industry standard connections (1/2 Inch BSP) make installation quick and easy Filter Pads:Aspen Fibre or Chillcel is available to ensure optimum saturation efficiency and extended trouble free operation. Filter pad frames are fitted with ABS plastic louvres to enhance appearance and improve performance. Braemar filter pads are designed and manufactured to maximise cooling efficiency
Standard Pack Size	1
UNSPSC Class	40101700
UOM	EA
Vendor Product	089089
Discharge Type	Aspenl Top
Cooling Air Flow Rate	3050 l/sec
Material	Powder Coated
Outdoor Dimensions	1000 mm Height x 1050 mm Width x 1050 mm Depth
Power Supply	Fan Motor: 7.1 A/1 Phase/1100 W
Speed Setting	2 Speed
