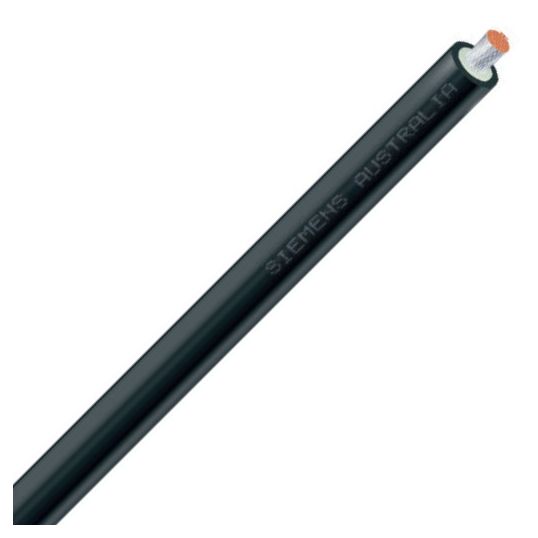

Siemens 35mm SDI Cable White 1mtr

Description

SDI Cable, 35 mm, Stranded Tinned Copper, 3.3 kV, 1 Core, 13.3 mm Overall Diameter, 1 mtr Length, Static 79.8 mm Flexible 106.4 mm Bend Radius, White Core, EPR (R-E-110) Insulation, PCP Rubber Sheath, Black Sheath, 110 deg C, AS/NZS 1125 AS/NZS 3008.1.1:2017 VDE 0250 part 602

Key Specifications

SKU	SIE5DF2143-6
Brand	Siemens
Product Type	SDI Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	5DF2143-6
Bend Radius	Static 79.8 mm/Flexible 106.4 mm
Conductor Size	35 mm
Conductor Type	Stranded Tinned Copper
Core Colours	White
Insulation Material	EPR (R-E-110)
Number of Cores	1 Core
Overall Diameter	13.3 mm
Sheath Colour	Black
Sheath Material	PCP Rubber
Standards	AS/NZS 1125 AS/NZS 3008.1.1:2017 VDE 0250 part 602
Temperature	110 deg C
Voltage	3.3 kV
