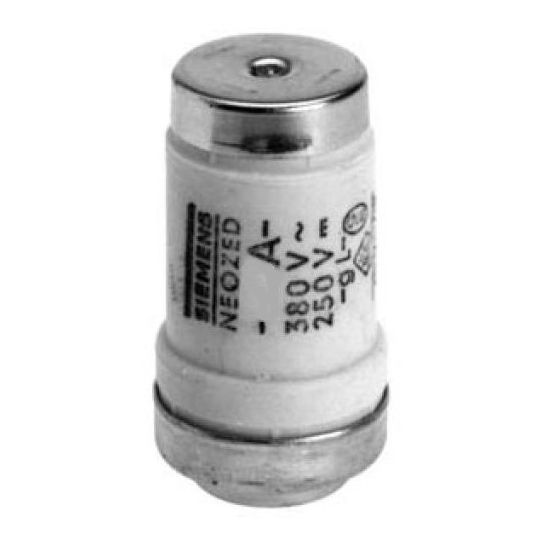

Siemens European Bottle Fuse Link Neozed 25A 400VAC 50kA 250VDC 8kA 15.3x36mm
Loading...
Description
European Bottle Fuse Link Neozed, AC Voltage: 400 VAC, DC Voltage: 250 VDC, 25 Amp, AC Interrupt Capacity: 50 kA, DC Interrupt Capacity: 8 kA, Class gG, Yellow,-5 to 40 deg C Ambient, 15.3mm Diameter x 36mm Length, DIN Size D02
Key Specifications
| SKU |
SIE5SE2325
|
|---|---|
| Brand |
Siemens
|
| Product Type |
Fuse Links
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 10 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | 5SE2325 |
| AC Interrupt Capacity | 50 kA |
| AC Voltage | 400 Volt AC |
| Colour | Yellow |
| Current | 25 Amp |
| DC Interrupt Capacity | 8 kA |
| DC Voltage | 250 Volt DC |
| Dimensions | 15.3 mm Diameter x 36 mm Length |
| Standard Reference | DIN Size D02 |
| Temperature | -5 to 40 deg C Ambient |
| Utilisation Category | Class gG |
