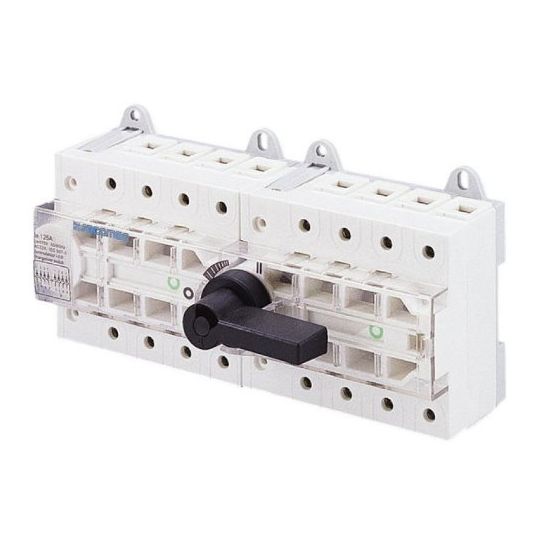

Socomec Changeover Switch With Visible Contacts Front Operated 4P 63A AC21 30 kW AC23 Base Mount IP65

Description

Changeover Switch With Visible Contacts Front Operated, 400/690 Volt AC, 220 Volt DC, AC21 Rating: 63 Amp, AC23 Rating: 25 Amp @ 690 Volt, 63 Amp @ 400 Volt, 30 kW @ 400/415 Volt, 4 Pole, 3 Phase, Switching Positions: 3, 50 mm, Base Mount, IP65, 115.5 mm Height, 195.5 mm Width, 85.5 mm Depth

Key Specifications

SKU	SOCVCO634P
Brand	Socomec
Range Name	SIRCO VM1
Product Type	Changeover Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Standard (I-0-II) and make before break (I-I and II-II) options available covering any application requirement Three stable positions (I-O-II) not affected by voltage drops or vibrations ensuring the connected load is protected against possible network interference Easy connections thanks to copper bar connection kit accessory for 2000 to 3200 A switches enabling the use of flat or edgewise connection with top or bottom bridging Compatibility with the ergonomic IP65 S-Type Handles which features interlocking (in the ON position), padlocking, UV and chemical agent resistive material and the choice of standard blue or red/yellow colour
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	VCO634P
AC23 Rating	25 Amp @ 690 Volt/63 Amp 30 kW @ 400-415 Volt
Conductor Size	50 sq-mm
Current	63 Amp
Depth	85.5 mm
Height	115.5 mm
IP Rating	IP65
Mounting Method	Base Plate
Number Of Poles	4 Pole
Phase	3 Phase
Switching Positions	3
Voltage	400-690 Volt AC/220 Volt DC
Width	195.5 mm
