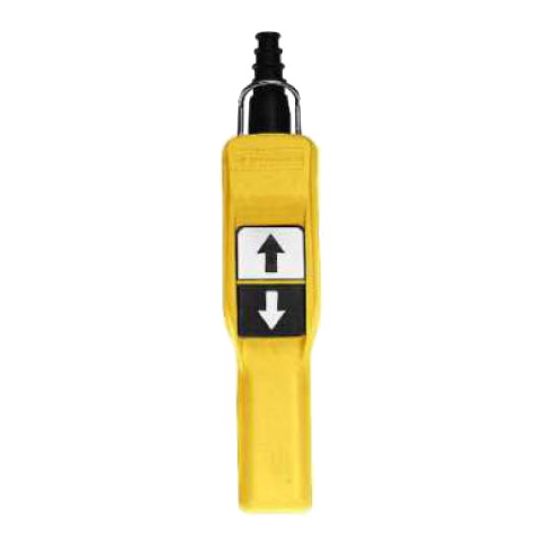

Schneider Pendant Hoist Control Station 2G 1N.O-1N.C Up/Down Polypropylene Yellow

Description

Pendant Hoist Control Station, 10 Amp, 2 Operators, 1NO-1NC, Slow Break, Legend: Up/Down Arrows, Black, White, Pushbutton, Screw Clamp Terminal, IP65, Polypropylene, Yellow, -25 to 70 deg C, 295 mm Height, 52 mm Width, 71 mm Depth

Key Specifications

Barcode (EAN-13)	3389110645026
SKU	TEEXAC-A205
Brand	Schneider
Range Name	XAC
Product Type	Control Stations

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	XACA205
Colour	Yellow
Connection Type	Screw Clamp
Actuator	Pushbutton
Contact Mode	Slow Break
Contact Configuration	1 Normally Opened & 1 Normally Closed
Enclosure Material	Polypropylene
Depth	71 mm
Height	295 mm
Interrupt Rating	10 Amp
IP Rating	IP65
Legend Colour	Black, White
Legend	Up/Down Arrows
Number of Operators	2 Modules
Temperature	-25 to 70 deg C
Width	52 mm
