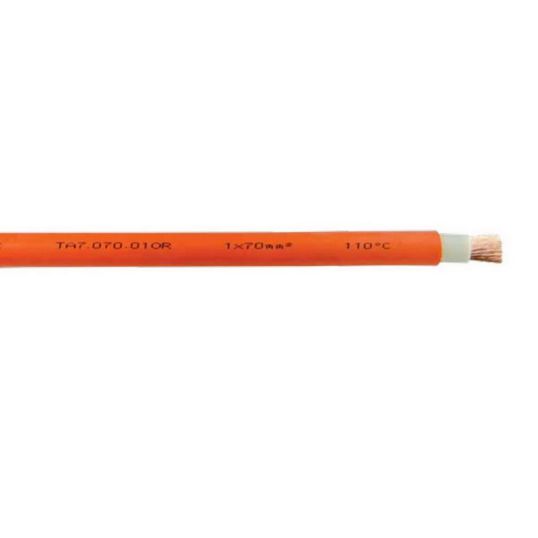

Treotham 50mm SDI Cable 1mtr

Description

SDI Cable, 50 mm, Class 6 Annealed Bare Copper, 0.6-1 kV, 270 Amp, 1 Core, 1499/0.2 mm Strands, 15.7 mm Overall Diameter, 1 mtr Length, 94.2 mm Bend Radius, 0.386 Ohm/km Conductor Resistance, EPR (R-E-110) Insulation, White Insulation, HF-110-R Sheath, Orange Sheath, -40 to 110 deg C, AS/NZS 1125 AS/NZS 3808 IEC60332-1 AS/NZS 5000.1

Key Specifications

SKU	TRETA7.0500.01.OE
Brand	Treotham
Product Type	SDI Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Low smoke halogen free (LSHF, LS0H, LSZH) UV resistant Flame retardant Resistant to oils, petrol, acids, sea water Submersible to 200 metres
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	TA7.0500.01.OE
Bend Radius	94.2 mm
Conductor Resistance	0.386 Ohm/km
Conductor Size	50 mm
Conductor Type	Class 6 Annealed Bare Copper
Current	270 Amp
Insulation Colour	White
Insulation Material	EPR (R-E-110)
Number of Cores	1 Core
Overall Diameter	15.7 mm
Sheath Colour	Orange
Sheath Material	HF-110-R
Standards	AS/NZS 1125 AS/NZS 3808 IEC60332-1 AS/NZS 5000.1
Stranding	1499/0.2 mm
Temperature	-40 to 110 deg C
Voltage	0.6-1 kV
