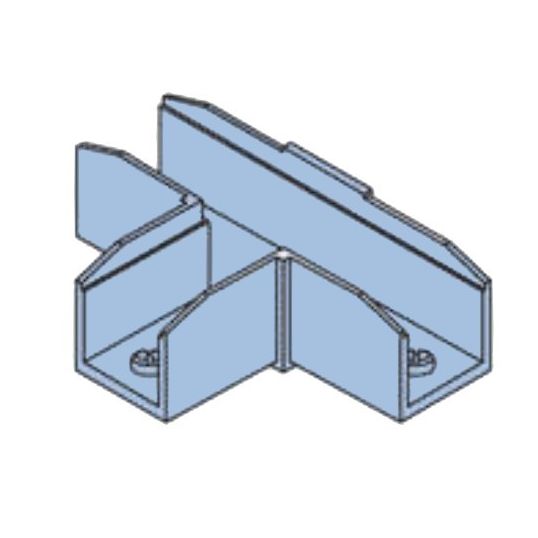

Unistrut Strut Channel Joiner Cross L125mm W40mm Aluminium
Loading...
Description
Strut Channel Joiner Cross, 125 mm Length, 40 mm Width, 6 mm Thickness, 14 mm Hole Diameter, 21 mm From End, 48 mm On Center Hole Spacing, Aluminium, For Use With: P1000 and P2000 Trunking, 2.5 Safety Factor
Key Specifications
| Barcode (EAN-13) |
932148051787
|
|---|---|
| SKU |
UNSP1222
|
| Brand |
Unistrut
|
| Product Type |
Strut Joiners & Braces
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 30101800 |
| UOM | EA |
| Vendor Product | 4000931 |
| For Use With | P1000 and P2000 Trunking |
| Hole Diameter | 14mm |
| Hole Spacing | 21mm From End 48mm On Center |
| Please Note | 2.5 Safety Factor |
| Thickness | 6mm |
| Width | 40mm |
Downloads
