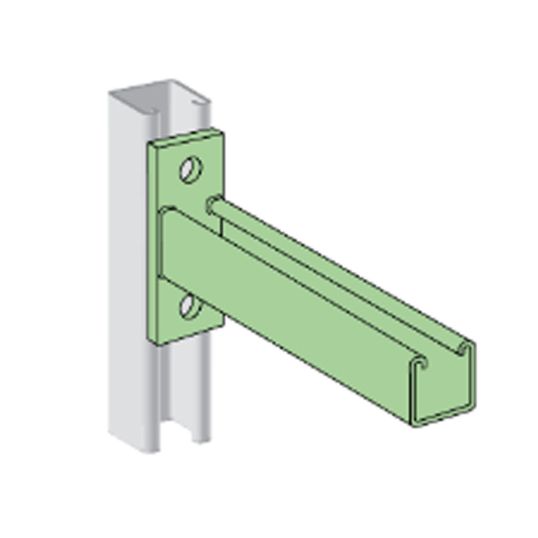

Unistrut Strut Cantilever Bracket L550mm 1.36kN Steel Galvanised
Loading...
Description
Strut Cantilever Bracket, 14 mm Hole Diameter, 21 mm From End 48 mm On Center Hole Spacing, 1.36 kN, For Use With P1000, P1010, P4010 or P5510 Channels, Steel, Galvanised, 8 mm Thickness, 550 mm Length, 40 mm Width, 139 mm Height
Key Specifications
| SKU |
UNSP2663550
|
|---|---|
| Brand |
Unistrut
|
| Product Type |
Clamps & Brackets
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 30101800 |
| UOM | EA |
| Vendor Product | 4001134 |
| Finish | Galvanised |
| For Use With | P1000 - P1010 - P4010 or P5510 Channels |
| Height | 139 mm |
| Hole Diameter | 14 mm |
| Hole Spacing | 21 mm From End 48 mm On Center |
| Material | Steel |
| Thickness | 8 mm |
| Width | 40 mm |
| Working Load | 1.36 kN |
