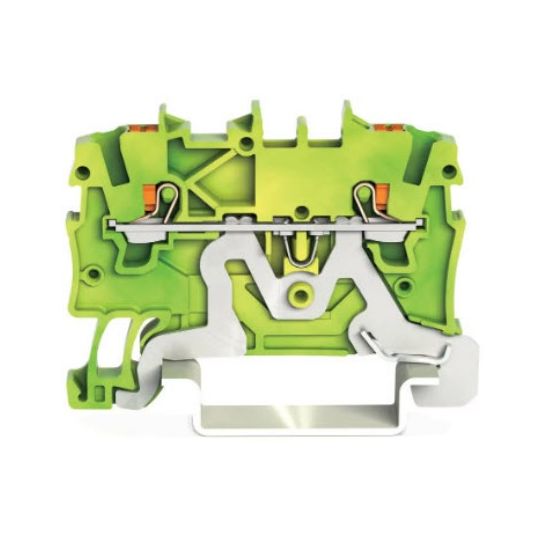

Wago Rail Terminal Block Push-In Cage Clamp 2 Wire 1 Level 1mm Green/Yellow Polyamide 66

Description

Rail Terminal Block, 1mm Conductor, 2 Conductors, Wire Strip Length: 9 to 11 mm, Wiring Format: 2 Conductor Ground, Front Wire Entry, 2 Connection Points, 1 Potentials, 1 Level, Number of Jumper Slots : 2, Marking Position: Centre/Side, Actuation Type: Push-In, Push-Button, Push-In Cage Clamp Terminal, DIN-35 Rail Mount, Conductor Material: Copper, Insulation Material: Polyamide 66, Green/Yellow, Height: 50.8 mm, 32.9 mm Width, 3.5 mm Depth

Key Specifications

Barcode (EAN-13)	4055143691604
SKU	WAG2200-1207
Brand	Wago
Range Name	TopJobs Series 2200
Product Type	Rail Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	39121400
UOM	EA
Vendor Product	2200-1207
Actuation Type	Push-In/Push-Button
Colour	Green/Yellow
Conductor Material	Copper
Conductor Size	1mm
Depth	3.5 mm
Insulation Material	Polyamide 66
Height	50.8 mm
Marking Position	Centre/Side
Mounting Method	DIN Rail
Number of Conductors	2
Number of Connection Points	2
Number of Jumper Slots	2
Number of Potentials	1
Number of Levels	1
Terminal Type	Push-In Cage Clamp
Width	32.9 mm
Wire Entry Orientation	Front
Wire Strip Length	9-11 mm
Wiring Format	2 Conductor Ground
