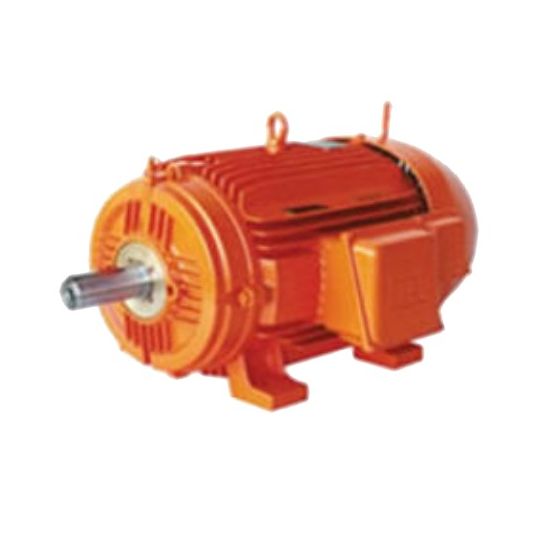

WEG Electric Motor Squirrel Cage Induction Mine Spec 2P 11kW 3Ph 415V 160M Frame Foot B3R(E) Mount

Description

Electric Motor Squirrel Cage Induction Mine Spec, 415 Volt AC, 19.7 Amp, 15 HP, 50 Hz, 3 Phase, 2950 rpm, 11 kW Output, 2 Pole, IC411-TEFC Enclosure, IP66, Frame: 160M, 42 mm Shaft, Rotation: Both (CW and CCW), Power Factor: 0.85, Service Factor: 1, Ball Bearing, Direct On Line Starting, Torque: 3.63 kgfm, Duty Cycle: S1, Foot B3R(E) Mounting, Insulation Class: H, Efficiency: 91.4%, Cast Iron Frame, Carbon Steel SAE 1040/45 Shaft, -20 to 40 deg C, 598 mm Length x 430 mm Width x 380 mm Height

Key Specifications

SKU	WEGKTE29PHEM
Brand	WEG
Range Name	WMining Series
Product Type	Motors SCIM Mine Spec

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The W22 Mining motors can operate with high efficiency in the severest applications They have special mechanical characteristics that ensure durability, mechanical strength, and robustness in every step of the mining process from extraction and transportation to the ore processing Furthermore, they require low maintenance, significantly reducing undesirable downtime, and providing greater plant availability Totally enclosed fan cooled
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	KTE29PHEM
Bearing Type	Ball
Current	19.7 Amp
Duty Cycle	S1
Efficiency	91.4%
Enclosure Type	IC411-TEFC
Frame	Size 160M
Frame Material	Cast Iron
Frequency	50 Hz
Height	380 mm
Horsepower	15 kW
IP Rating	IP66
Mounting Method	Foot
Insulation Class	Class H
Number Of Poles	2 Pole
Output	11 kW
Phase	3 Phase
Rotation	Both (CW and CCW)
Power Factor	0.85
Shaft Size	42 mm
Shaft Material	Carbon Steel SAE 1040/45
Speed	2950 rpm
Service Factor	1
Starting Method	Direct On Line
Temperature	-20 to 40 deg C
Torque Rating	3.63 kgfm
Voltage	415 Volt AC
Width	430 mm
