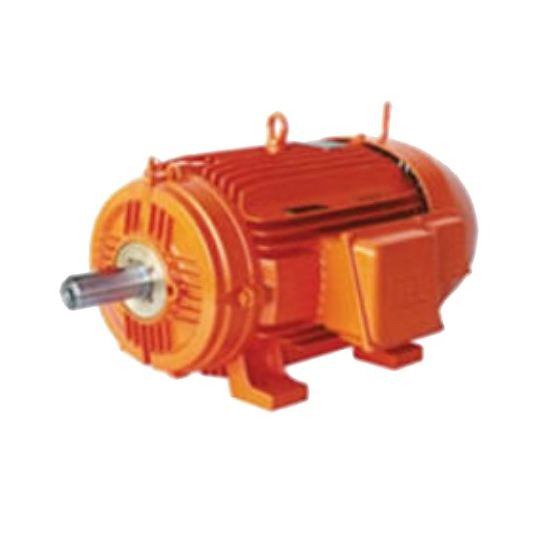

WEG Electric Motor Squirrel Cage Induction Mine Spec 2P 4kW 3Ph 415V 112M Frame Flange B5R(E) Mount

Description

Electric Motor Squirrel Cage Induction Mine Spec, 415 Volt AC, 7.32 Amp, 4 kW, 50 Hz, 3 Phase, 2900 rpm, 4 kW Output, 2 Pole, IC411-TEFC Enclosure, IP66, Frame: 112M, 28 mm Shaft, Rotation: Both (CW and CCW), Power Factor: 0.86, Service Factor: 1.15, Ball Bearing, Direct On Line Starting, Torque: 13.1 N/m, Duty Cycle: S1, Flange B5R(E) Mounting, Insulation Class: H, Efficiency: 89.6%, Cast Iron Frame, Carbon Steel SAE 1040/45 Shaft, -20 to 40 deg C, 448 mm Length x 302 mm Width x 280 mm Height

Key Specifications

SKU	WEGMTE192PHEM
Brand	WEG
Range Name	WMining Series
Product Type	Motors SCIM Mine Spec

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The W22 Mining motors can operate with high efficiency in the severest applications They have special mechanical characteristics that ensure durability, mechanical strength, and robustness in every step of the mining process from extraction and transportation to the ore processing Furthermore, they require low maintenance, significantly reducing undesirable downtime, and providing greater plant availability Totally enclosed fan cooled
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	MTE192PHEM
Bearing Type	Ball
Current	7.32 Amp
Duty Cycle	S1
Efficiency	89.6%
Enclosure Type	IC411-TEFC
Frame	Size 112M
Frame Material	Cast Iron
Frequency	50 Hz
Height	280 mm
Horsepower	4 kW
IP Rating	IP66
Mounting Method	Flange
Insulation Class	Class H
Number Of Poles	2 Pole
Output	4 kW
Phase	3 Phase
Rotation	Both (CW and CCW)
Power Factor	0.86
Shaft Size	28 mm
Shaft Material	Carbon Steel SAE 1040/45
Speed	2900 rpm
Service Factor	1.15
Starting Method	Direct On Line
Temperature	-20 to 40 deg C
Torque Rating	13.1 N/m
Voltage	415 Volt AC
Width	302 mm
