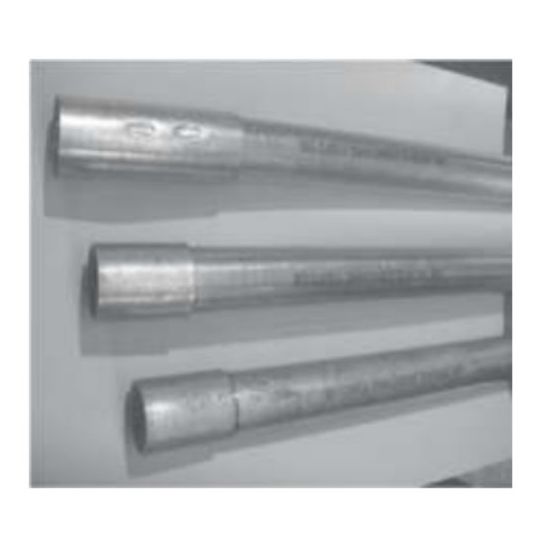

Williams Mining Rigid Conduit Metal 50mm 4Mx2mm Steel Galvanised

Description

Rigid Conduit Metal, 50 mm, 46 mm ID, 50 mm Outside Diameter, 4 mtr Length, 2 mm Thickness, Steel, Galvanised

Looking for something specific? Search with keywords to help filter your required specifications.

Features	WMIS conduit is manufactured from steel tube. It has an accurate circular cross section, a uniform wall thickness The interior and exterior surfaces are thoroughly and evenly coated via the in line Galvanizing process to AS1397. Z275 The conduit is manufactured to 4 meter lengths, is threaded both ends and includes one coupling per length as is the requirement of AS/NZ 2053.7 thread pitch is 1.5mm Storage it is highly recommended that Steel conduit be stored in a dry area until required Application WMIS-C3-A conduit can be installed indoors or outdoors, in dry or wet locations, exposed or concealed, in all kinds of atmospheric conditions, and in hazardous locations It provides excellent mechanical protection for the conductors while reducing electro-magnetic field exposure and shielding against electro-magnetic Interference All WMIS conduits are pre galvanized at point of manufacture in accordance with AS1397 and coating class of Z275 for coatings on ferrous articles that are not centrifuged with a wall thickness of 1.5 to 3mm thickness, or average coating thickness
Standard Pack Size	1
UNSPSC Class	39131700
UOM	LN
Vendor Product	WMI-50C3-A-NLA
Inside Diameter	46mm
Conduit Size	50 mm
Outside Diameter	50mm
Thickness	2mm
