Bussmann Semiconductor Fuse Link High Speed Bolt In Offset 20A 240VAC/150VDC 200kA 8.4x47mm
Loading...
Description

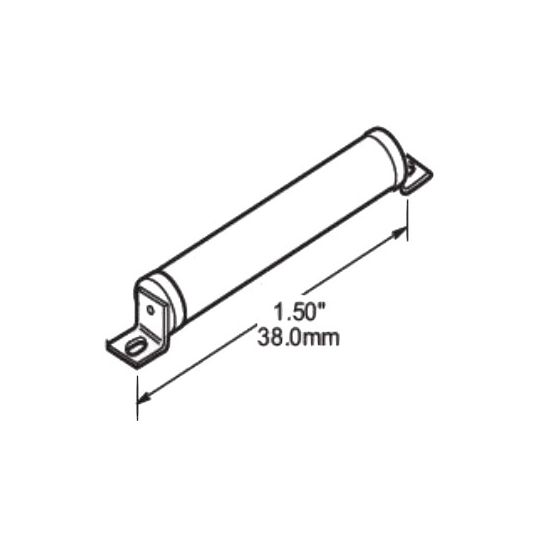

Semiconductor Fuse Link High Speed Bolt In Offset, 240 VAC/150 VDC, 20 Amp, 38mm Fixing Centres, Interrupt Capacity: 200 kA, Class aR, Bolt In Offset Tag, 8.4mm Diameter x 47mm Length
Key Specifications
| SKU |
BUS20LCT
|
|---|---|
| Brand |
Bussmann
|
| Range Name |
BS88 Semi Conductor
|
| Product Type |
Fuse Links Semiconductor
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | 20LCT |
| Current | 20 Amp |
| Dimensions | 8.4 mm Diameter x 47 mm Length |
| Fixing Centres | 38 mm |
| Interrupt Capacity | 200 kA |
| Tag Type | Bolt In Offset |
| Utilisation Category | Class aR |
| Voltage | 240 Volt AC/150 Volt DC |
