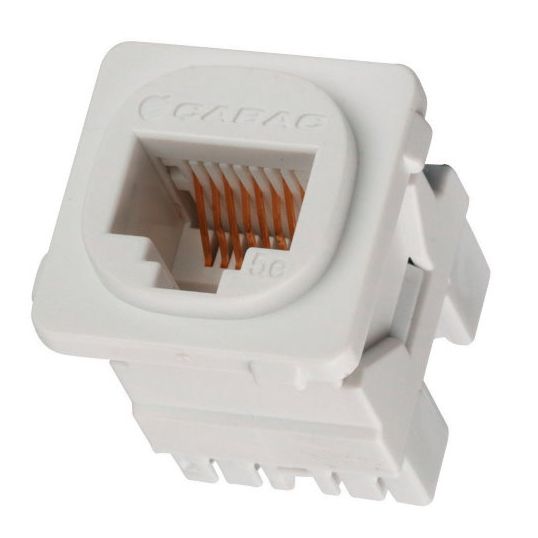

Cabac S-Net Outlet Mechanism Cat5e UTP RJ45 8P8C 568A/B White

CABAC Category 5e/Class D Jacks and couplers have been tested to meet all the electrical performance requirements of ANSI/TIA 568- C.2 CAT 6 and ISO 11801 Channel E standards and feature gold plated contacts for superior performance and reliability. Termination is made easy with both 568A and 568B wiring schemes printed on the jacks. Cables with conductors ranging from 24 to 22 AWG can be terminated into these IDC jacks up to 100 times with a 110 and/or Krone style punch down tool. Both our CAT 5eJacks and Couplers are rated to at least 700 mating cycles with an RJ45 plug, meaning patch leads can be plugged and unplugged at least 700 times.
