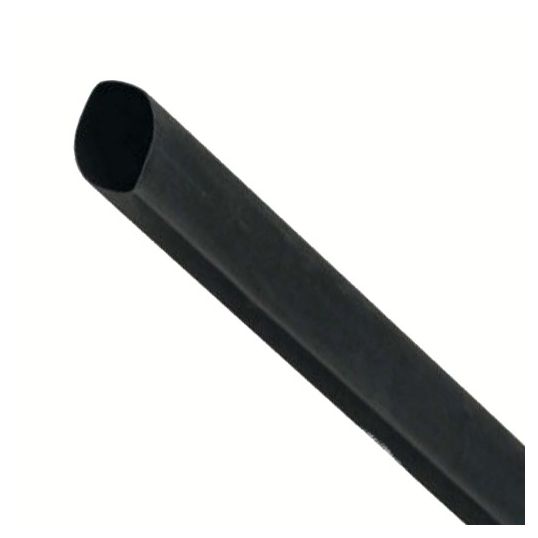

Cabac XLP Heatshrink Tubing Thin Wall Plain Unlined General Purpose 4.8-2.4mm 1.2M Black
Description
Key Specifications
Barcode (EAN-13) |
9318674533290
|
---|---|
SKU |
CAAXLP5-BK/4FT
|
Brand |
Cabac
|
Range Name |
XLP Tubing
|
Product Type |
Heatshrink Tubing
|
Technical Specifications
Additional Information
Features |
|
---|---|
Standard Pack Size | 1 |
UNSPSC Class | 39121700 |
UOM | LN |
Vendor Product | XLP5BK/4FT |
Colour | Black |
Dielectric Strength | 20 kV/mm |
Elongation | 400% |
Flammability Rating | ASTM D2671/VW1 |
Lining Type | Plain Unlined |
Shrink Diameter From | 4.8 mm |
Shrink Diameter To | 2.4 mm |
Shrink Ratio | 2:1 |
Temperature | -75 to 135 Deg C |
Shrink Temperature | 105 deg C |
Tensile Strength | 10.4 Mpa |
Wall Thickness Recovered | 0.48 mm |
Wall Type | Thin |
Voltage | 600 Volt |
