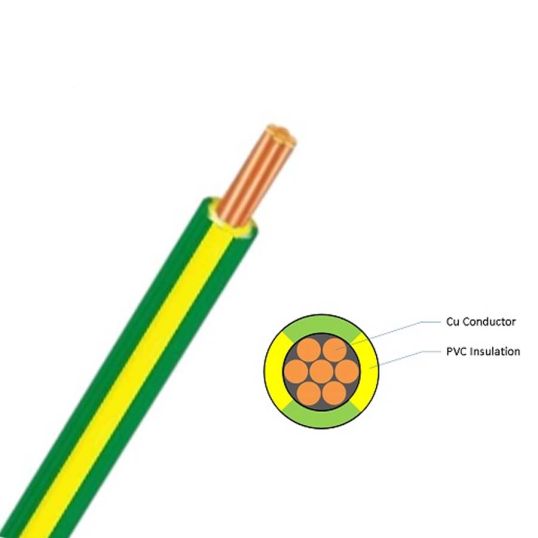

Building Wire 1 Core 16mm V-90 PVC Green/Yellow 0.6/1kV

CMI 16mm Building Wire Green/Yellow 500mtr

PRODUCT CODE:
CMIV7170CGN/YW
Std Pack Size
500
OUR P/N:
CMIV7170CGN/YW

You need to be registered and logged in to view product details and pricing

Building Wire, Single Insulated, 1 Core, 16 mm, Annealed Copper, 0.6/1 kV, 7/1.7 mm Strands, 5.1 mm Nominal Diameter, 7.2 mm Overall Diameter, 1 mm Insulation Thickness, V-90 PVC Insulation, Unsheathed, Green/Yellow Insulation, AS/NZS 5000.1

Additional Information

Additional Information
Brand CMI
Standard Pack Size 500
UNSPSC Class 26121500
UOM MTR
Vendor Product V7170CGN/YW
Conductor Type Annealed Copper
Insulation Colour Green/Yellow
Insulation Thickness 1 mm
Insulation Material V-90 PVC
Nominal Diameter 5.1 mm
Overall Diameter 7.2 mm
Product Type Building Wire
Stranding 7/1.7 mm
Standards AS/NZS 5000.1
Voltage 0.6-1 kV
Conductor Size 16 mm
