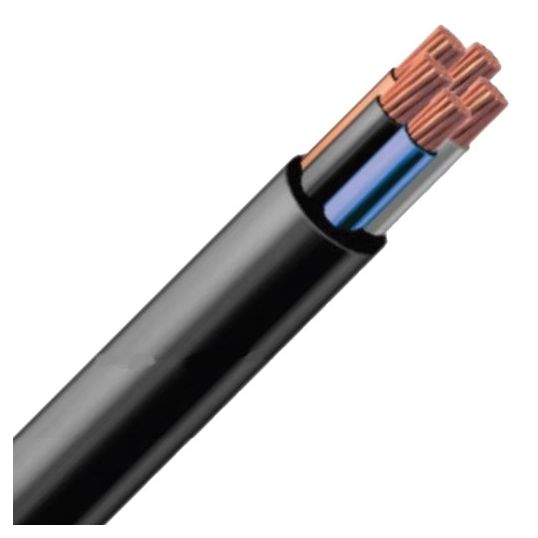

Elcon Aristoflex Heavy Duty Flexible Cable 4 Core & Earth 10mm 0.6/1kV Tinned Copper EPR/CPE Black

Description

Flexible Cable, Heavy Duty, 4 Core & Earth, 10 mm, Class 5 Tinned Copper, 0.6/1 kV, 66 Amp, 22.3 mm Overall Diameter, Bend Radius: Static - 89.2 mm Flexible - 111.5 mm, 3.6 mm Sheath Thickness, Insulation Resistance: DC - 1.95 MOhm/km, EPR (R-EP-90) Insulation, CPE Sheath, Red White Blue Black Green/Yellow Cores, Black Sheath, Static - -40 to 90 deg C Flexible - -25 to 90 deg C

Key Specifications

SKU	ELNCR-ARMF5G10BM
Brand	Elcon Cables
Product Type	Flexible Cable Heavy Duty

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Submersible to 200mtrs Suitable for fresh water, salt water, sewage/contaminated water UV, Sunlight, oil and weather resistant Flame retardant to IEC 60332-1-2:2004, EN60332-1-2-2004 Maximum permisible short circuit temperature 1s 250 deg C
Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	CR-ARMF5G10BM-NLA
Bend Radius	Static: 89.2 mm Flexible: 111.5 mm
Conductor Size	10 mm
Conductor Type	Class 5 Tinned Copper
Core Colours	Black/Blue/Red/White/Green/Yellow
Current	66 Amp
Insulation Material	EPR (R-EP-90)
Insulation Resistance	DC: 1.95 MOhm/km
Number of Cores	4 Core + Earth
Overall Diameter	22.3 mm
Sheath Colour	Black
Sheath Material	CPE
Sheath Thickness	3.6 mm
Temperature	Static: -40 to 90 deg C Flexible: -25 to 90 deg C
Voltage	0.6-1 kV
