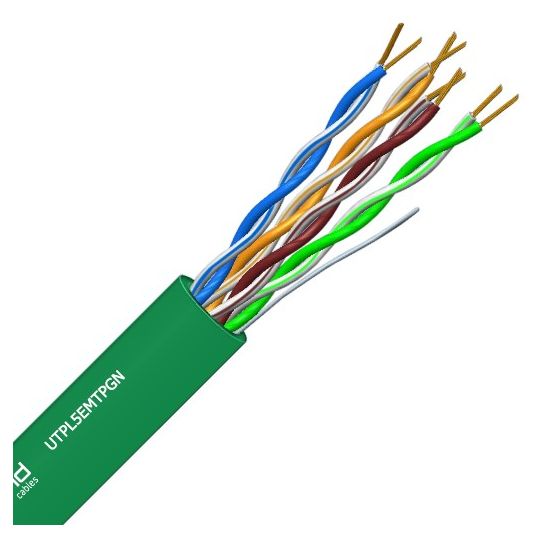

UTP Data Cable Cat5e 4 Pair, 24 AWG/0.23 mm, 0.609mm Conductor Diameter, Stranding: 7/0.203mm, 93.8 Ohm/km at 20 deg C Conductor Resistance, 1000 MOhm.km at 20 deg C Insulation Resistance, 0.18mm Insulation Thickness, Cat5e UTP Cable, Elongation: Insulation: >300%, Outer Sheath: >100%, 4 Pair, Bend Radius: Install: 55mm, 126 N Max. Pulling Force, Tensile Strength: Before Aging: >13.8MPa, Bare Copper Conductor, Rip Cord Filler, PE Insulation, Green Sheath,-15 to 70 deg C, 305 mtr Length
Additional Information
Brand | Garland |
---|---|
Standard Pack Size | 305 |
UNSPSC Class | 43223300 |
UOM | MTR |
Vendor Product | UTPL5EMTPGN305W |
Elongation | Insulation: >300%/Outer Sheath: >100% |
Product Type | Cat5E Cable |
Max. Pulling Force | 126 N |
Tensile Strength | Before Aging: >13.8MPa |
Filler Material | Rip Cord |
Pair Count | 4 Pair |
Stranding | 7/0.203mm |
Cable Type | Cat5e UTP |
Insulation Material | PE Compound |
Length | 305 mtr |
Sheath Colour | Cream |
Bend Radius | Install: 55mm |
Insulation Resistance | 1000 MOhm.km at 20 deg C |
Insulation Thickness | 0.18mm |
Conductor Diameter | 0.609mm |
Conductor Size | 24 AWG/0.23 mm |
Conductor Resistance | 93.8 Ohm/km at 20 deg C |
Conductor Material | Bare Copper |
Temperature | -15 to 70 deg C |
