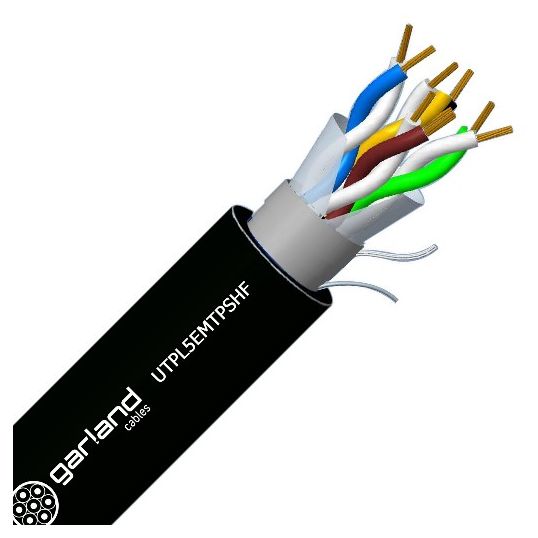

Garland UTP Data Cable Cat5e 4 Pair 24AWG Polyethylene Black 500M

Description

UTP Data Cable Cat5e 4 Pair, 24 AWG/0.23 mm, 0.609mm Conductor Diameter, Stranding: 7/0.203mm, 93.8 Ohm/km at 20 deg C Conductor Resistance, 1000 MOhm.km at 20 deg C Insulation Resistance, 0.18mm Insulation Thickness, Cat5e UTP Cable, Elongation: Insulation: >300%, Outer Sheath: >100%, 4 Pair, Bend Radius: Install: 55mm, 126 N Max. Pulling Force, Tensile Strength: Before Aging: >13.8MPa, Bare Copper Conductor, Rip Cord Filler, PE Insulation, Black Sheath,-15 to 70 deg C, 500 mtr Length

Key Specifications

SKU	GARUTPL5EMTPSHF500
Brand	Garland
Product Type	Cat5E Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	43223300
UOM	MTR
Vendor Product	UTPL5EMTPSHF500
Cable Type	Cat5e UTP
Bend Radius	Install: 55mm
Conductor Diameter	0.609mm
Conductor Resistance	93.8 Ohm/km at 20 deg C
Conductor Size	24 AWG/0.23 mm
Conductor Material	Bare Copper
Elongation	Insulation: >300%/Outer Sheath: >100%
Filler Material	Rip Cord
Insulation Resistance	1000 MOhm.km at 20 deg C
Insulation Thickness	0.18mm
Insulation Material	PE Compound
Max. Pulling Force	126 N
Pair Count	4 Pair
Sheath Colour	Black
Stranding	7/0.203mm
Temperature	-15 to 70 deg C
Tensile Strength	Before Aging: >13.8MPa
