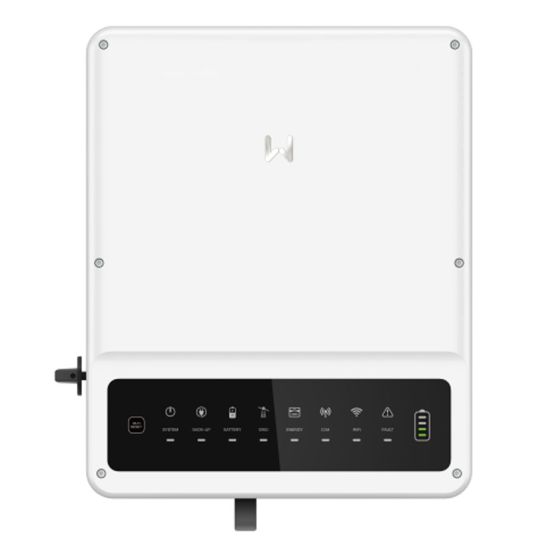

Goodwe EH Plus Series Hybrid Solar Inverter 6kW 1 MPPT Single Phase

Description

Hybrid Solar Inverter, 1 Phase, 1 MPPTs, 6 kW AC Output, 6000 VA AC Max. Apparent, 230 Volt, 50/60 Hz, 26.1 Amp AC Output, 1 (Adjustable From 0.8 Leading to 0.8 Lagging) Power Factor, <3% Total Harmonic Distortion, 97.6% Efficiency, 97% European Weighted Efficiency, 99.9% MPPT Efficiency, Non-Isolated, 3000 mtr Max. Altitude, Battery: Lithium-Ion, 350 Volt, RS485, CAN, LED Display, Natural Convection Cooling, Wall Mounting, IP65, -25 to 60 deg C, 0-95% Relative Humidity, 433mm Height, 354mm Width, 147mm Depth, 17 kg

Key Specifications

SKU	GDWGW6000N-EHHYBRID
Brand	Goodwe
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Smart Control for Smart Energy Superb Safety & Reliability Friendly & Thoughtful Design Flexible & Adaptable Applications
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	GW6000N-EHHYBRID
AC Max. Apparent Power	6000 VA
AC Nominal Voltage	230 Volt
AC Operating Frequency	50/60 Hz
AC Output Power	6 kW
AC Output Current	26.1 Amp
Battery	Lithium-Ion 350 Volt
Communication Port	RS485/CAN
Cooling Method	Natural Convection
Depth	147 mm
Display Type	LED
Efficiency	97.60%
Height	433 mm
IP Rating	IP65
European Weighted Efficiency	97%
Max. Operating Altitude	3000 mtr
Mounting Method	Wall
MPPT Efficiency	99.90%
Number of MPPTs	1
Operating Temperature	-25 to 60 deg C
Phase	1 Phase
Power Factor	1 (Adjustable From 0.8 Leading to 0.8 Lagging)
Relative Humidity	0-95%
Topology	Non-Isolated
Total Harmonic Distortion	<3%
Width	354 mm
