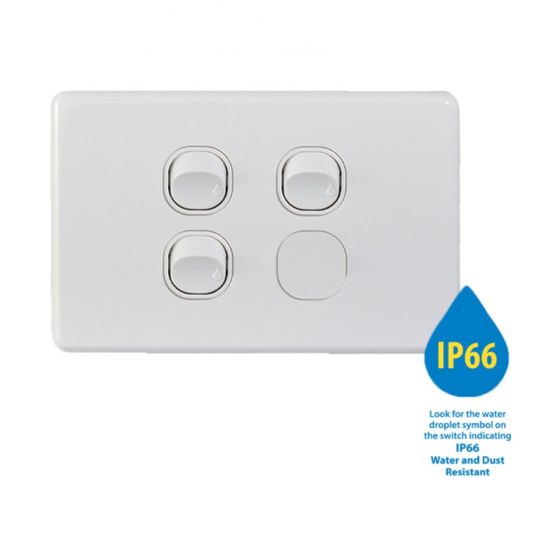

GSME Trader Switch 3G 10AX 250VAC Horiz White IP66

$GSME\GSME_PUSW3G66.JPG$

Description

Switch, 250 Volt AC, 10 AX, 3 Gang, Horizontal Orientation, IP66, Wall Mount, 84 mm Mounting Centres, White, 117 mm Height, 76 mm Width, 39 mm Depth

Looking for something specific? Search with keywords to help filter your required specifications.

Features	Trader IP66 rated flush switches have been designed to achieve IP66 on a smooth, flat, nonporous surface, from the front of the switch only The switches are compatible with mounting hardware for standard 84 mm mounting centre wallplates No provision has been made to prevent water and dust entering from behind the switch Care should be taken when mounting, to ensure that water and dust cannot bypass the gasket and come in contact with live parts Ensure that the mounting surface is completely flat, smooth and non-porous Make sure the rear gasket seal is located in its correct position. Use the silicone washer
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	PUSW3G66
Colour	White
Current	10 AX
Depth	39 mm
Height	117 mm
IP Rating	IP66
Mounting Centres	84 mm
Mounting Method	Wall
Number Of Gangs	3 Gang
Orientation	Horizontal
Voltage	250 Volt AC
Width	76 mm
