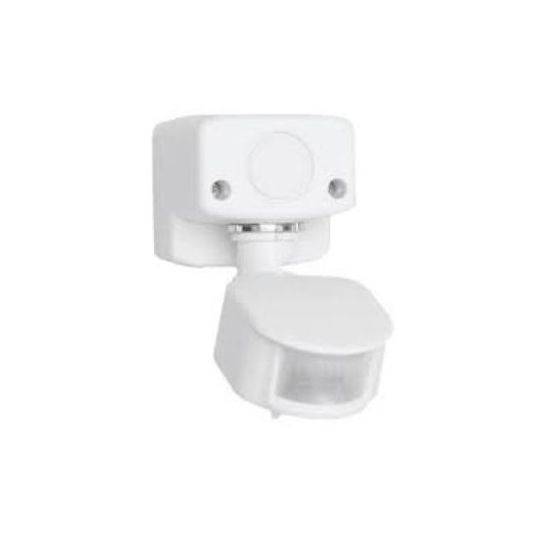

Housewatch Passive Infrared Motion Detector 120deg 10M 10A 12V/DC IP44 White Wall/Ceiling Mount

$Housewatch\Housewatch_55_320.jpg$

Description

Stand Alone Sensor, 12 Volt, 10 Amp, 10 Watt, 50/60 Hz, 0-2000 lux Intensity, IP44, Wall/Ceiling Mounting, 2.5 mtr Mounting Height, 120 deg Rotatable/130 deg Left/Right/60 deg Down Detection Angle, 10 mtr Detection Distance, ABS, White, -20 to 45 deg C, 82 mm Length, 55 mm Width, 117 mm Height, Time on Adjustment 6 sec to 12 min

Key Specifications

Barcode (EAN-13)	9323325003206
SKU	HSA55-320
Brand	Housewatch

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Adjustable time, distance and LUX Voltage free contact AC/DC input Stainless steel screws Suitable for garden lighting, solar lighting, boats and caravans Manual override/Polycarbonate construction/Fully adjustable sensor head
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	55-320
Colour	White
Current	10 Amp
Detection Angle	120 deg Rotatable/130 deg Left/Right/60 deg Down
Detection Distance	10 mtr
Frequency	50/60 Hz
Height	117 mm
Intensity	0-2000 Lux
IP Rating	IP44
Material	ABS
Mounting Height	2.5 mtr
Mounting Method	Wall/Ceiling
Please Note	Time on Adjustment 6 sec to 12 min
Temperature	-20 to 45 deg C
Wattage	10 Watt
Voltage	12 Volt
Width	55 mm
