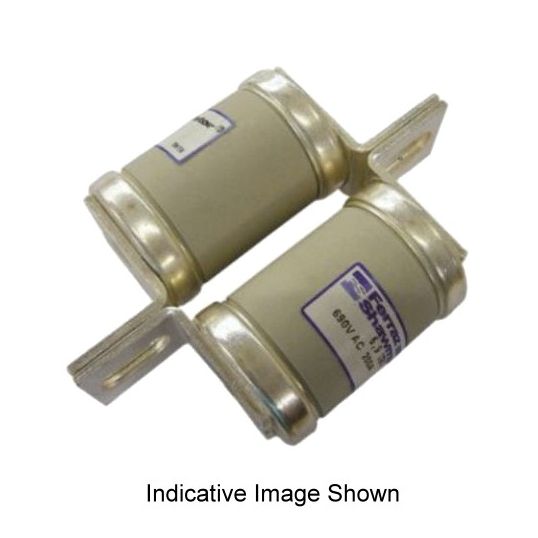

IPD Semiconductor Fuse Link Dual Body Bolt In Centre 600A 250VAC 120kA 37.3x82mm
Loading...
Description
Semiconductor Fuse Link Dual Body Bolt In Centre, 250 VAC, 600 Amp, 48 to 66mm Fixing Centres, Interrupt Capacity: 120 kA, Class aR, Bolt In Centre Tag, 37.3mm Diameter x 82mm Length
Key Specifications
| SKU |
IPDF082460
|
|---|---|
| Brand |
IPD
|
| Product Type |
Fuse Links HRC Bolt In
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 3 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | F082460 |
| Current | 600 Amp |
| Dimensions | 37.3 mm Diameter x 82 mm Length |
| Fixing Centres | 48-66 mm |
| Interrupt Capacity | 120 kA |
| Tag Type | Bolt In Centre |
| Utilisation Category | Class aR |
| Voltage | 250 Volt AC |
