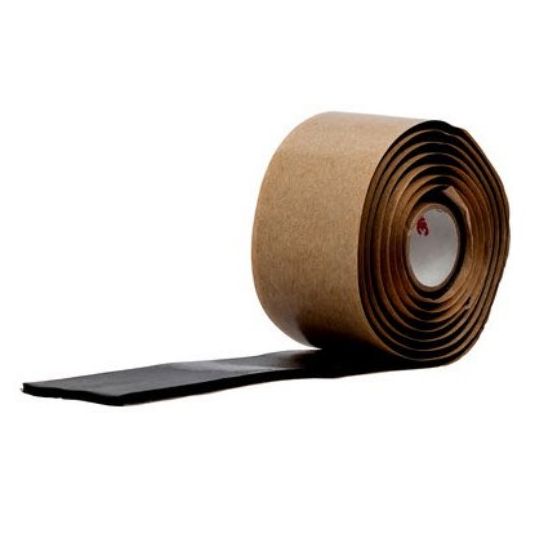

3M Electrical Insulation Putty Tape L1.5MxW38.1mmx3.175mm Black

chevron-left
loader
Loading...

Description

chevron-down
3M Scotchfil Electrical Insulation Putty comes in a tape form that is used to insulate irregular surfaces like fittings and valves. This self-fusing, electrical-grade tape can be stretched or wrapped and helps to insulate connections up to 600 Volt. It withstands a wide temperature range of 32 to 176 deg F (0 to 80 deg C). 3M Scotchfil Electrical Insulation Putty is a 125 mil thick, non corrosive, mastic adhesive that offers optimized adherence. This tape shaped putty has outstanding aging properties and is ideal for creating a resin dam at resin pressure joints. It helps to seal multi conductor cable connections, as well as wire exits at high voltage joints. RoHS 2011/65/EU Compliant.

Key Specifications

chevron-down
SKU
MAD3M80610833727
Brand
3M
Range Name
Scotchfil

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Non-corrosive mastic adhesive in a flexible tape form
  • UL Listed and RoHS 2011/65/EU Compliant
  • Suitable for temperatures from 32 to 176 deg F (0 to 80 deg C)
  • 1 roll carton, 12 rolls case
Standard Pack Size 1
UNSPSC Class 39121700
UOM EA
Vendor Product 3M 80610833727
Adhesion Strength 0.328 kN/m at 10 deg F, 0.219 kN/m at 75 deg F
Adhesive Material Mastic
Backing Material Electrical Insulation Putty
Colour Black
Breaking Strength 3.5 KN/mtr - 50 Tape, 7KN/mtr -51 Tape
Insulation Resistance 10^6 Ohm
Grade Premium
Elongation 1000%
Pack Size 1 Roll
Temperature 0 to 80 deg C
Thickness 3.175 mm
Width 38.1 mm
