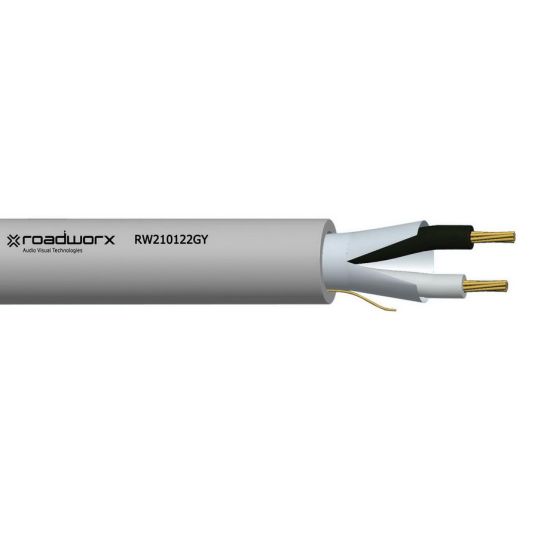

Madison Roadworx Data & Control Cable 22AWG 7/0.25mm PE/AL/PVC Grey 500M

$Madison_Technologies\Madison_RW210122-GY.jpg$

Description

Data & Control Cable, 22 AWG, Tinned Copper, Bend Radius: Install: 45mm, Elongation: Sheath: >100%, Inner Sheath: >=300%, 1 Pair, Pulling Tension: 48 N, Tensile Strength: Sheath: >=12 N/mm; Inner: >=13.6 N/mm, Stranding: 7/0.25 +/-0.006mm, Insulation Thickness: >=0.41mm, Sheath Thickness: >=0.64mm, Conductor Resistance: DC: 49.2 Ohm/km at 20 deg C, Capacitance: Core to Core: 79 pF/mtr, Core to Shield: 154 pF/mtr, 64 Ohm Impedance, Polyethylene Insulation, PVC Sheath, Aluminium Foil 100% Coverage Screen, Clear, Black Insulation, Grey Sheath, 4.5 +/-0.2mm Overall Diameter, 500 mtr Length,-15 to 70 deg C

Key Specifications

SKU	MADRW210122GY500
Brand	Madison
Range Name	Roadworx
Product Type	Data & Control Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	43221700
UOM	MTR
Vendor Product	RW210122GY500
Bend Radius	Install: 45mm
Conductor Resistance	DC: 49.2 Ohm/km at 20 deg C
Capacitance	Core to Core: 79 pF/mtr/Core to Shield: 154 pF/mtr
Conductor Size	22 AWG
Conductor Type	Tinned Annealed Copper
Elongation	Sheath: >100%/Inner Sheath: >=300%
Insulation Material	Polyethylene
Insulation Colour	Clear/Black
Insulation Thickness	>=0.41mm
Overall Diameter	4.5 +/-0.2mm
Pair Count	1
Pulling Tension	48 N
Screen Material	Aluminium Foil
Sheath Colour	Grey
Sheath Material	PVC
Sheath Thickness	>=0.64mm
Stranding	7/0.25 +/-0.006mm
Temperature	-15 to 70 deg C
Tensile Strength	Sheath: >=12 N/sq-mm; Inner: >=13.6 N/sq-mm
