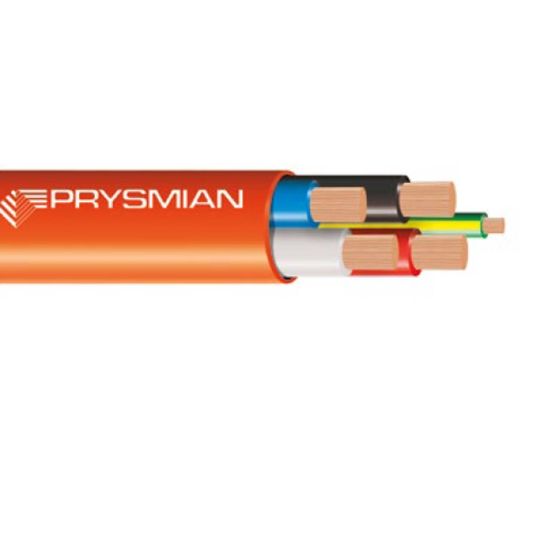

Prysmian Flexible Cable 4 Core + Earth 16mm 0.6/1kV XLPE/PVC Orange
Loading...
Description
Flexible Cable, 16 mm, Class 5 Annealed Copper, 0.6-1 kV, 4 Core + Earth, 19.59-21.6 mm Overall Diameter, 85 mm Bend Radius, 0.7 mm Insulation Thickness, 1.15 Ohm/km Conductor Resistance, X-90 XLPE Insulation, 5V-90 PVC Sheath, Orange Sheath, -15 to 90 deg C, AS/NZS 1125 AS/NZS 5000.1
Key Specifications
| SKU |
MMC20278331
|
|---|---|
| Brand |
Prysmian
|
| Product Type |
Flexible Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 20278331 |
| Bend Radius | 85 mm |
| Conductor Resistance | 1.15 Ohm/km |
| Conductor Size | 16 mm |
| Conductor Type | Class 5 Annealed Copper |
| Insulation Material | X-90 XLPE |
| Number of Cores | 4 Core + Earth |
| Insulation Thickness | 0.7 mm |
| Overall Diameter | 19.59-21.6 mm |
| Sheath Colour | Orange |
| Sheath Material | 5V-90 PVC |
| Standards | AS/NZS 1125 AS/NZS 5000.1 |
| Temperature | -15 to 90 deg C |
| Voltage | 0.6-1 kV |
