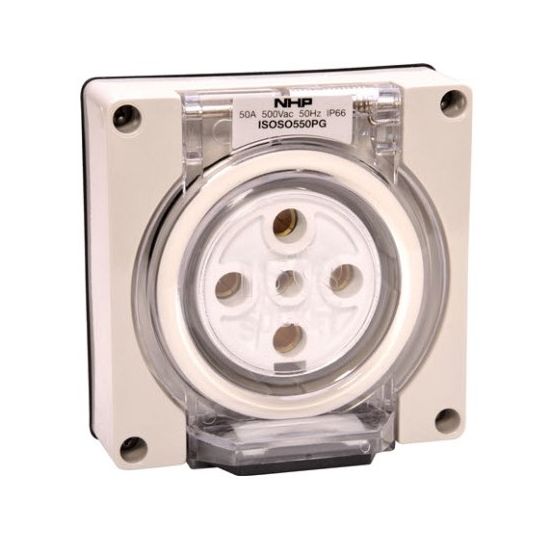

NHP Socket Outlet Less Enclosure 3Ph 50A 500V 5 Pin Grey IP66

$NHP\NHP_ISOSO550PGLB.jpg$

Description

Socket Outlet Less Enclosure, 3 Phase, 50 Amp, 500 Volt AC, 5 PIn Round, Grey, IP66, Surface Mount, Polycarbonate, Screw, Terminal Capacity: 10 to 16 mm, No Back Box

Key Specifications

Barcode (EAN-13)	9321807200808
SKU	NHPISOSO550PGLB
Brand	NHP
Range Name	ISO
Product Type	Socket Outlets

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Large range covering 10 to 50A in 3, 4 and 5 pin configurations High ingress protection of IP66 across the range User friendly design with extruded ribbed grips, large switch handle and large socket latches for easy operation with or without gloves Suitable for most industrial and commercial applications
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	ISOSO550PGLB
Colour	Grey
Connection Type	Screw
Current	50 Amp
IP Rating	IP66
Mounting Method	Surface
Phase	3 Phase
Pin Configuration	5 Pin Round
Please Note	No Back Box
Terminal Capacity	10-16 mm
Voltage	500 Volt
