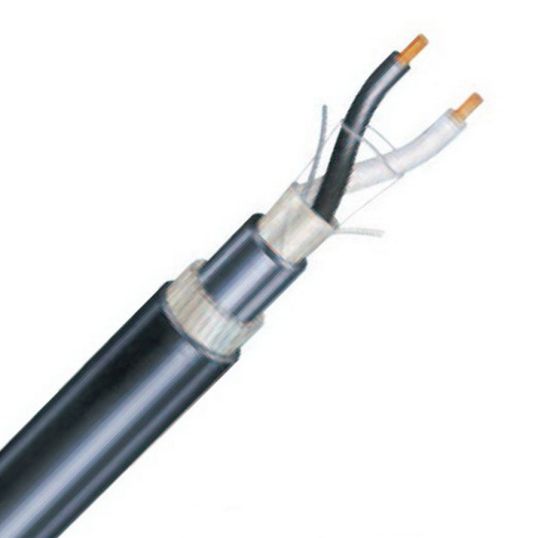

Olex Instrolex Instrumentation Cable Armoured 1 Pair Overall Screened 1.5mm PVC/SWA/PVC Black
Loading...
Description
Instrumentation Cable, Armoured, 1 Pair, Overall Screened, 1.5 mm, Plain Annealed Copper, 7/0.5 mm Strands, 6.2 mm Bedding Diameter, 8 mm Diameter Over Armour, 10.2 mm Overall Diameter, 123 mm Bend Radius, 2 kN Pulling Tension, Aluminium/Polyester Tape Screen, Steel Wire Armour, V-90RP PVC Insulation, V-90RP PVC Sheath, Black Sheath
Key Specifications
| Barcode (EAN-13) |
99319215078525
|
|---|---|
| SKU |
OLXIEF184-1A9
|
| Brand |
Olex
|
| Range Name |
Instrolex
|
| Product Type |
Instrumentation Cable Armoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | IEF184AA001CXAA |
| Armour Material | Steel Wire |
| Bedding Diameter | 6.2 mm |
| Bend Radius | 123 mm |
| Conductor Size | 1.5 mm |
| Conductor Type | Annealed Copper |
| Insulation Material | V-90RP PVC |
| Number of Pairs | 1 Pair |
| Overall Diameter | 10.2 mm |
| Pulling Tension | 2 kN |
| Screen Material | Aluminium/Polyester Tape |
| Stranding | 7/0.5 mm |
| Screen Format | Overall Screened |
| Sheath Colour | Black |
| Sheath Material | V-90RP PVC |
