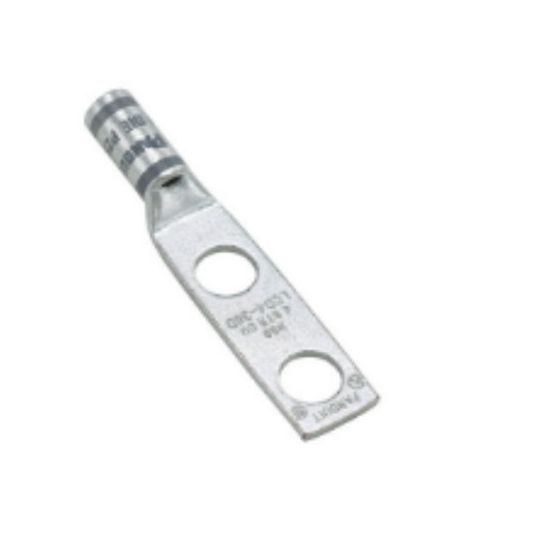

Panduit Crimp Lug Standard Non-Insulated with Two Hole Inspection Window Copper 6 AWG Wire 10in Stud 2.15 in

$Panduit\Panduit_LCD6-10A-L_LCD6-14A-L.jpg$

Description

Crimp Lug, Standard, Non-Insulated, with Two Hole Inspection Window Copper, 6 AWG Wire, 10in Stud, Stud Hole Spacing: 0.63 in, Standard Barrel, Barrel Length: 0.81 in, 2.15 in Overall Length, 2 Holes, Wire Strip Length: 7/8 in, Copper Body, Copper Conductor, Tin Electroplated Finish, 90 deg C, Inside Diameter: 0.22 in, 0.31 in Outside Diameter, 0.46 in Lug Width, 0.08 in Lug Thickness, Crimping Die: P24, with Inspection Window

Key Specifications

Barcode (EAN-13)	07498338308
SKU	PANLCD6-10A-L
Brand	Panduit
Product Type	Lugs Standard

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection Inspection window to visually assure full conductor insertion Tin plated to inhibit corrosion For use with stranded copper conductors Blue colour code
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	LCD6-10A-L
Barrel Length	0.81 in
Barrel Type	Standard
Body Material	Copper
Conductive Material	Copper
Conductor Size	6 AWG Wire
Crimping Die	P24
Finish	Tin Electroplated
Inside Diameter	0.22 inch
Lug Thickness	0.08 inch
Lug Width	0.46 inch
Number of Holes	2 Holes
Outside Diameter	0.31 inch
Overall Length	2.15 in
Please Note	with Inspection Window
Stud Size	10 inch Stud
Temperature	90 deg C
