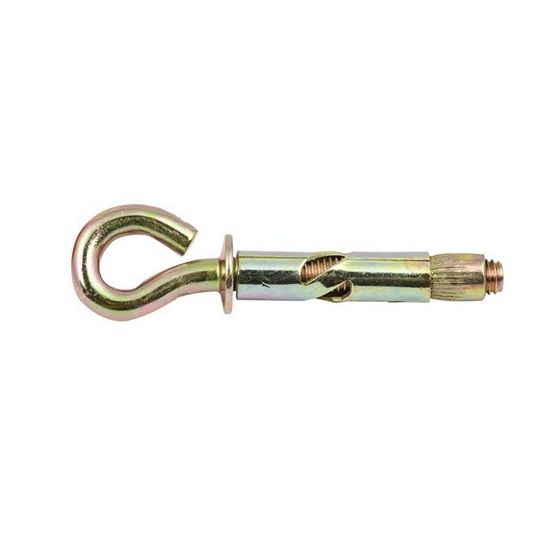

Ramset Masonry Sleeve Anchor Eye Bolt Medium Duty 8x47mm Carbon Steel Zinc Plated

Description

Sleeve Anchor Eye Bolt Medium Duty, 8 mm Diameter, M6, 47 mm Length, 55 mm Drill Depth, 8 mm Drill Diameter, 35 mm Embedment Depth, 60 mm Minimum Edge Distance, 105 mm Minimum Spacing, 4.2 kN Tensile Strength, 15 Nm Torque Rating, Carbon Steel, Zinc Plated, For Use With Concrete, Solid Brick, Solid Block, Hollow Brick, Hollow Block, Hollow Slab, 100

Key Specifications

Barcode (EAN-13)	9310535020925
SKU	RAMD08045X
Brand	Ramset

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The DynaBolt Plus patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load and provide improved security The DynaBolt Plus is a fully assembled through fixture anchor. Therefore, assembly, marking out and re-positioning of fixtures is eliminated making installation fast and easy
Standard Pack Size	100
UNSPSC Class	31162100
UOM	EA
Vendor Product	RAMD08045X
Drill Diameter	8 mm
Drill Depth	55 mm
Diameter	8 mm
Embedment Depth	35 mm
Finish	Zinc Plated
For Use With	Concrete/Solid Brick/Solid Block/Hollow Brick/Hollow Block
Material	Carbon Steel
Minimum Edge Distance	60 mm
Pack Size	100 Pack
Minimum Spacing	105 mm
Product Type	simple
Tensile Strength	4.2 kN
Thread Size	M6
Torque Rating	15 Nm
