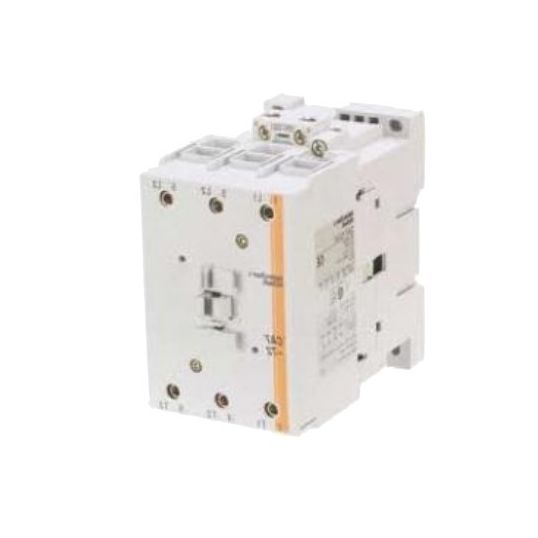

Contactor General Purpose AC Operated Non-Reversing 3 Pole 32kW 60A AC3 100A AC1 32V 3NO Main DIN Rail Mount

Description

Contactor General Purpose AC Operated Non-Reversing Standard, 32 Volt AC, AC3 Rating (kW): 32, AC3 Rating (Amps): 60 at 415 Volt, 34 at 690 Volt, AC1 Rating (Amps): 100 at 415 Volt, 3NO Main, 3 Pole, DIN Rail Mount or Base, IP20, 122 mm Height, 72 mm Width, 3 Phase

Key Specifications

Barcode (EAN-13)	9321807145864
SKU	S&SCA7-60-00/32VAC-U
Brand	Sprecher+Schuh
Range Name	CA7
Product Type	Contactors Non-Reversing

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Several contactor families provide a wide variety of contactor sizes, offering economy and selection Compact dimensions saves panel space With load side terminals
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	CA7600032VACU
AC1 Rating (Amps)	100 Amp AC1
AC3 Rating (Amps)	60/34 Amp AC3
AC3 Rating (kW)	32 kW
Contact Configuration	3 Normally Opened
Height	122 mm
IP Rating	IP20
Mounting Method	DIN Rail/Base
Number Of Poles	3 Pole
Operating Coil Voltage	32 Volt AC
Please Note	3 Phase
Width	72 mm
