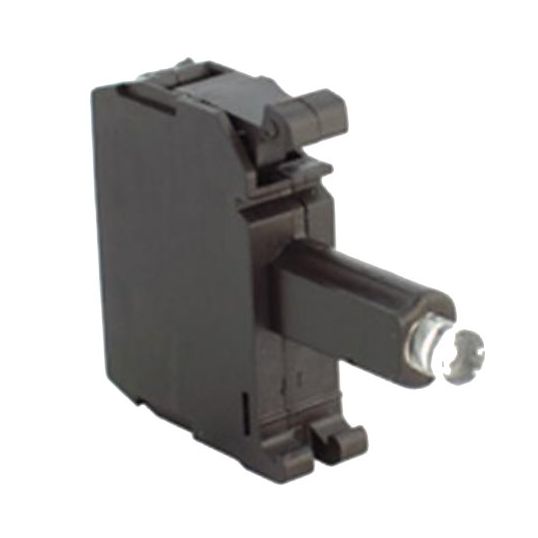

Sprecher+Schuh Pilot Lamp Block Integrated LED With Spring Terminals 240V Red Panel Mount 22.5 mm

$Sprecher\Sprecher_D7Q7R.jpg$

Description

Pilot Lamp Block Integrated LED With Spring Terminals, Size: 22.5 mm, 240 Volt AC, 0.022 Amp, Integrated LED, Spring Terminal, Panel Mount, IP65, IP66, Glass-Filled Nylon/PA6/PA66 (Polyamide 6), -25 to 70 deg C, For Use With: Pilot Lights

Key Specifications

SKU	S&SD7-Q7R
Brand	Sprecher+Schuh
Range Name	D7
Product Type	Pilot Lamp Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	D7 pilot devices offer maximum flexibility and a wide choice for all 22.5mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations Aesthetically appealing and modularly designed to make assembly and interchangeability easy Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments D7P is a plastic operator with a captive black plastic front bezel Constructed of high grade thermoplastics, the D7P operators provide strong chemical resistance making them suitable for use in different environments and strong chemical resistance D7M has a die-cast zinc housing and mounting ring for rugged durability Finished with corrosion resistant chrome plating, the D7M also features a captive shiny metal bezel for a polished appearance
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	D7Q7R
For Use With	Pilot Lights
Current	0.022 Amp
Housing Material	Glass-Filled Nylon/PA6/PA66 (Polyamide 6)
IP Rating	IP65/66
Lamp Type	Integrated LED
Mounting Method	Panel
Size	22.5 mm
Temperature	-25 to 70 deg C
Terminal Connection	Spring
Voltage	240 Volt AC
