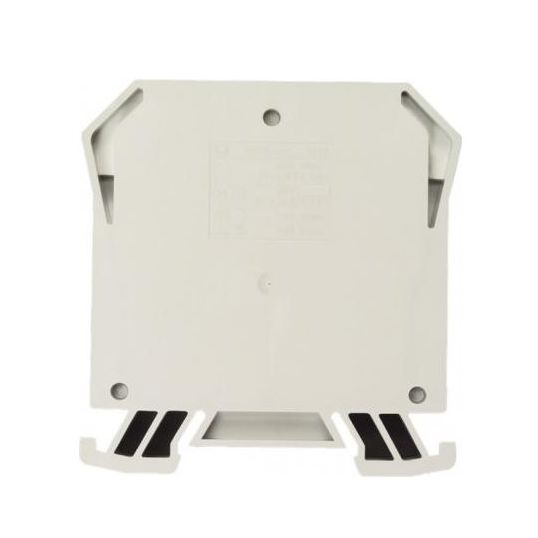

Sprecher+Schuh Rail Terminal Block Screwed 1 Wire 1 Level 70mm Grey

Description

Terminal Block, 70 mm, 2 Conductors, 750 Volt, 175 Amp, 26 mm Wire Strip Length, 15 Nm Tightening Torque, 1 Conductor Wiring Format, 2 Connection Points, 1 Level, Terminal Marking Position, Screw Terminal, Rail Mounting, Grey, 40 to 90 deg C, UL94 V0 Flammability, 74 mm Height, 71 mm Width, 23 mm Depth

Key Specifications

SKU	S&SV7-W70
Brand	Sprecher+Schuh
Range Name	V7-W
Product Type	Rail Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Designed for ease of wiring, secure connections and durability Comprehensive range, offering a wide array of terminal types for most circuits and functions Terminals accommodate a full range of wire sizes from 0.5 to 70 sq-mm wire cross section Cone shaped guide allows easy wire insertion Specialty terminals including two-level, grounding, diode, isolating, fuse, sensor and thermocouple terminals
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	V7W70
Colour	Grey
Conductor Size	70mm
Current Rating	175 Amp
Depth	23 mm
Height	74 mm
Flammability	UL94 V0
Marking Position	Terminal
Mounting Method	Rail
Number of Conductors	2
Number of Connection Points	2
Number of Levels	1
Temperature	40 to 90 deg C
Terminal Type	Screw
Tightening Torque	15 Nm
Voltage Rating	750 Volt
Width	71 mm
Wire Strip Length	26 mm
Wiring Format	1 Conductor
