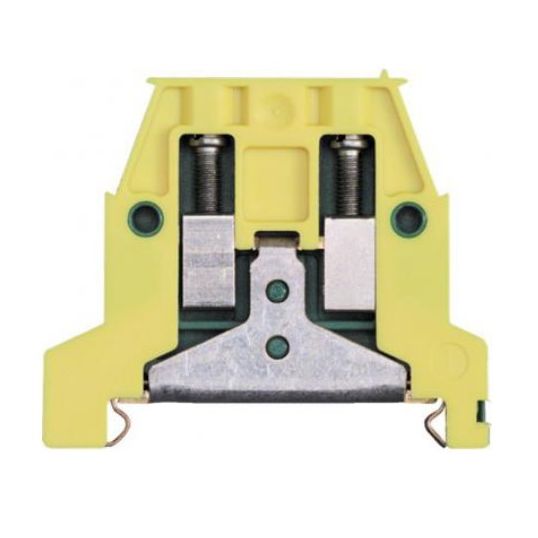

Sprecher+Schuh Rail Earth Terminal Block Screwed 1 Wire 4mm Green/Yellow Polyamide 66

Description

Earth Terminal Block, 4 mm, 2 Conductors, 11 mm Wire Strip Length, 0.7 Nm Tightening Torque, 1 Conductor Wiring Format, 2 Connection Points, 1 Level, Terminal Marking Position, Screw Terminal, DIN Rail Mounting, Polyamide 66 Insulation, Green/Yellow, -40 to 90 deg C, 48 mm Height, 35 mm Width, 6 mm Depth

Key Specifications

Barcode (EAN-13)	9321807224019
SKU	S&SV7-WG4
Brand	Sprecher+Schuh
Range Name	V7-W
Product Type	Rail Earth Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Designed for ease of wiring, secure connections and durability Comprehensive range, offering a wide array of terminal types for most circuits and functions Terminals accommodate a full range of wire sizes from 0.5 to 70 sq-mm wire cross section Cone shaped guide allows easy wire insertion Specialty terminals including two-level, grounding, diode, isolating, fuse, sensor and thermocouple terminals
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	V7WG4
Colour	Green/Yellow
Conductor Size	4.0mm
Depth	6 mm
Insulation Material	Polyamide 66
Height	48 mm
Marking Position	Terminal
Mounting Method	DIN Rail
Number of Conductors	2
Number of Connection Points	2
Number of Levels	1
Terminal Type	Screw
Temperature	-40 to 90 deg C
Tightening Torque	0.7 Nm
Width	35 mm
Wire Strip Length	11 mm
Wiring Format	1 Conductor
