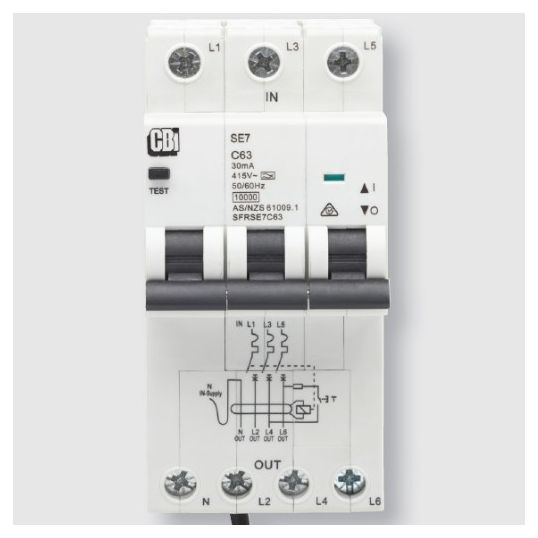

SFR Combination RCD Circuit Breaker RCBO 3P+N 63 Amp 415V AC 10 kA

Description

Combination RCD Circuit Breaker RCBO Type A, 63 Amp, 415 Volt AC, 50/60 Hz, Interrupt Capacity: 10 kA, Trip Sensitivity: 30 mA, Number of Poles: 3P + N, Trip Characteristic: D Curve, 25 mm Terminal Connection, IP20, Black Handle,-5 to 55 deg C, 113.5mm Height, 53.4mm Width, 77.2mm Depth

Key Specifications

SKU	SFRSE7D63
Brand	SFR
Product Type	Combination RCBO

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Provides overload, short circuit and earth leakage protection Provides protection in the event of direct/indirect contact by the human body Provides comprehensive protection to residential and commercial distribution systems Provides protection against insulation failure Operate with or without built-in neutral lead Handle is sealable and padlock-able (with padlock attachment)
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	SFRSE7D63
Colour	Black Handle
Current	63 Amp
Height	113.5mm
Depth	77.2mm
Frequency	50/60 Hz
Interrupt Capacity	10 kA
IP Rating	IP20
Number Of Poles	3 Pole
Temperature	-5 to 55 deg C
Trip Characteristic	D Curve
Terminal Connection	25 sq-mm
Trip Sensitivity	30 mA
Voltage	415 Volt
Width	53.4mm
