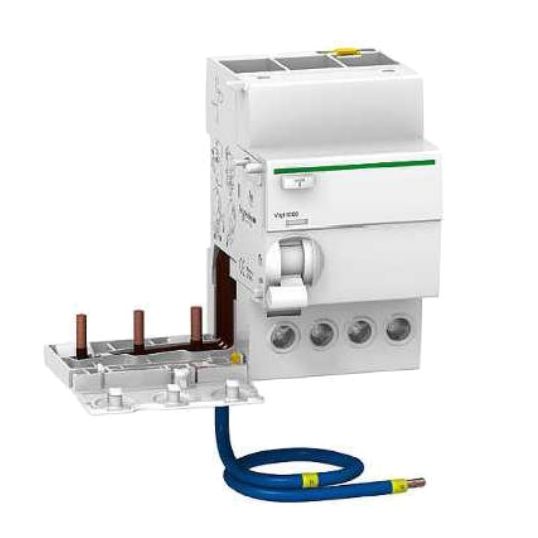

Schneider Earth Leakage Add-on Block Circuit Breaker 3P + NPole 63A 400-415VAC 30mA DIN Rail Clip-on Mount
Loading...
Description
Add-On Earth Leakage Module, 400-415 Volt, 63 Amp, 50/60 Hz, 30 mA Trip Sensitivity, 3 + N Pole, Tunnel Terminal, IP20/40, DIN Rail/Clip-On Mounting, 1-25 sq-mm Flexible/1-35 sq-mm Rigid, 3.5 Nm Bottom Tightening Torque, 5 to 60 deg C, 91 mm Height, 108 mm Width, 73.5 mm Depth
Key Specifications
| Barcode (EAN-13) |
3606480551826
|
|---|---|
| SKU |
SHNA9V02763
|
| Brand |
Schneider
|
| Product Type |
Earth Leakage
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | A9V02763 |
| Depth | 73.5 mm |
| Current | 63 Amp |
| Conductor Size | 1-25 sq-mm Flexible/1-35 sq-mm Rigid |
| Frequency | 50/60 Hz |
| Height | 91 mm |
| IP Rating | IP20/40 |
| Mounting Method | DIN Rail/Clip-on |
| Number Of Poles | 3 Pole |
| Temperature | 5 to 60 deg C |
| Terminal Type | Tunnel |
| Tightening Torque | 3.5 Nm Bottom |
| Trip Sensitivity | 30 mA |
| Voltage | 400-415 Volt |
| Width | 108 mm |
