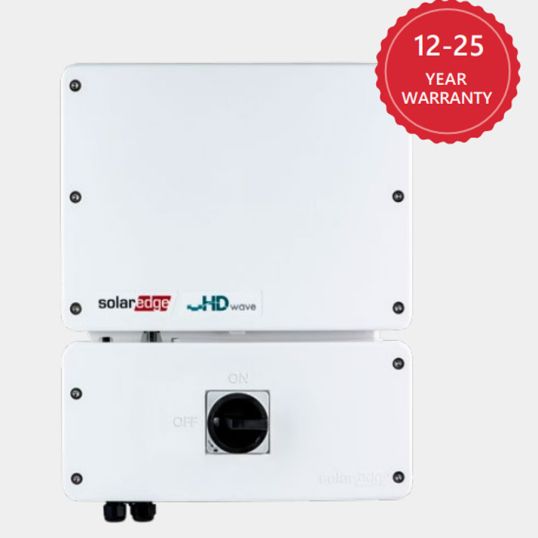

SolarEdge Energy Hub Inverter with Prism Technology Single Phase 6kVA Built-in Smart Energy Meter & Wi-Fi

$Solar_Edge\SolarEdge_SE6000H-AUSNBBX14.jpg$

Description

Solar Inverter Energy Hub, 1 Phase Phase, 12000 Watt DC Input, 480 Volt DC DC Input, 16.5 Amp DC Max. Input, 6000 VA AC Output, 220-230 Volt AC, 50/60 Hz +/-5, 27.5 Amp AC Output, 1 (Adjustable 0.8 Leading-0.8 Lagging) Power Factor, <3% Total Harmonic Distortion, 0.992 Efficiency, 0.99 European Weighted Efficiency, Battery: SolarEdge Energy Bank Battery/LG RESU10H Prime/LG RESU16H Prime, RS485-Modbus Devices/SE Protocol/Ethernet/Wi-Fi/EnergyNet, Natural Convection Cooling, <25 dBA, IP65, -40 to 60 deg C

Key Specifications

SKU	SLRSE6000H-AUSNBBX14
Brand	SolarEdge
Product Type	Solar Inverter Energy Hub

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Single string design for inverter up to 5 kW AC 99% weighted efficiency with up to 300% DC oversizing Modular design - future ready with optional upgrades - full home backup power, DC coupled storage, backup generator connection, EV charger with Solaredge home EV charger Built-in consumption monitoring Multi-inverter, scalable storage solution Advanced safety features includes SafeDC rapid shutdown and integrated arc fault protection Built-in panel level monitoring Rapid Inverter Commissioning via smartphone using SetApp Small, lightweight and easy to install IP65 rated for indoor and outdoor installations
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	SE6000H-AUSNBBX14
AC Nominal Voltage	220-230 Volt AC
AC Operating Frequency	50/60 Hz +/-5
AC Output Power	6000 VA
Communication Port	RS485-Modbus Devices/SE protocol/Ethernet/Wi-Fi/EnergyNet
AC Output Current	27.5 Amp
Battery	SolarEdge Energy Bank Battery/LG RESU10H Prime/LG RESU16H Prime
Cooling Method	Natural Convection
DC Input Power	12000 Watt
DC Input Voltage	480 Volt DC
DC Max. Input Current	16.5 Amp
Depth	174 mm
Efficiency	0.992
European Weighted Efficiency	0.99
Height	450 mm
IP Rating	IP65
Noise Level	<25 dBA
Operating Temperature	-40 to 60 deg C
Phase	1 Phase
Power Factor	1 (Adjustable 0.8 Leading-0.8 Lagging)
Total Harmonic Distortion	<3%
Width	370 mm
